KIT to make a home made smart wallbox, single phase, working with Home Assistant, NodeRED, Domoticz, ...

KIT to make a home made smart wallbox, threee phase, working with Home Assistant, NodeRED, Domoticz, ...

Bidirectional enegy and power meter with RS485 Modbus and 1 S0 pulsed output, 2000 pulses/kWh, 65A max, DIN rail, 2 modules wide.

DDS238-1 ZN/S Power Energy meter, bidirectional, with ModBus and 1 S0 (pulsed) output, 45A, single phase

Connect one or more DomBus networks of modules with any industrial or home automation system using MQTT or MQTT-AD

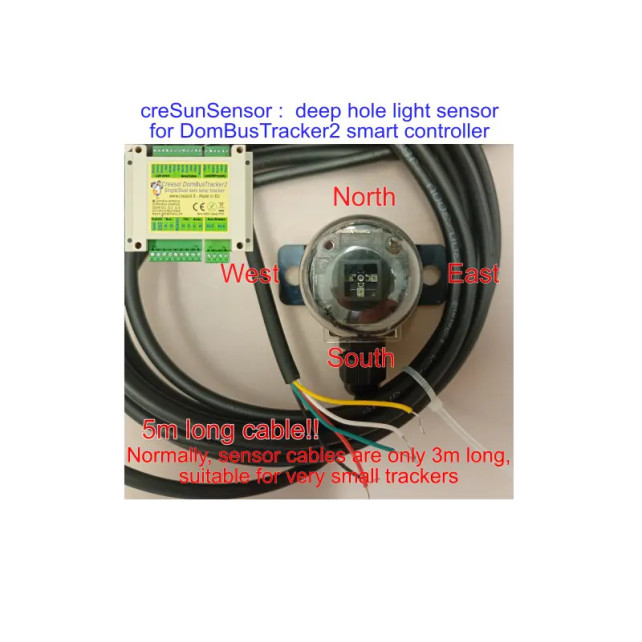

Sun light sensor for single and dual axis controllers like DomBusTracker and DomBusTracker2

Residual Current Circuit Breaker (RCCB) type-EV or type-B, three phases, 400V 40A for electric vehicle charging stations and wallbox, with protection current 30mA AC and 6mA DC.
Compliant with IEC/EN61008-1 and IEC/EN62423.

Residual Current Circuit Breaker (RCCB) type-B or type-EV240V 40A or 63A for electric vehicle charging stations and wallbox, single phase, with protection current 30mA AC and 6mA DC.

Bidirectional three-phase enegy and power meter with RS485 Modbus and 1 S0 pulsed output, configurable 400-6400 pulses/kWh, DIN rail, 4 modules wide.

DIN-rail modular 25A 400V 4P contactor with 230Vac coil with only 1.6W coil power.

DIN-rail modular 40A 230V 2P contactor with 230Vac coil with only 1.6W coil power.

DIN rail modular energy meter, with 1 pulsed output, 230V 65A max. 35mm wide (2 modules size).

Electric vehicle charging cable, 11 kW,  16 Ampere, three-phases, with white Type-2 plug on one side, and white Type-2 socket on other side.

Electric vehicle charging cable, 22 kW,  32 Ampere, three-phases, with white Type-2 plug on one side, and white Type-2 socket on other side.

Electric vehicle charging cable, 8 kW,  32 Ampere, single-phases, with white Type-2 plug on one side, open on other side, so it's possible to connect to a home made wallbox using the Smart EVSE module DomBusEVSE

Electric vehicle charging cable, 11 kW,  16 Ampere, three-phases, with white Type-2 plug on one side, open on other side, so it's possible to connect to a homemade wallbox build using the DomBusEVSE smart EVSE module.

USB to RS485 adapter / converter with additional GND and +5V output.

Minimal KIT to start home automation system that measure power/energy consumption/production, display charts, control connected devices like air conditioning systems.

Modbus energy meter:
230V 50Hz 100A max
Modbus protocol (RS485)

Plug & Play home automation KIT, completed with preinstalled software and power supply, with 3 domotic modules: DomBus31 (8 relay outputs), DomBus12 (9 inputs/outputs), DomBusTH (temperature+humidity sensor, red/green/white LEDs, 6 inputs/outputs) and DomRelay2 (2 relays module)

Waterproof NTC temperature sensor, 10k @25°C, 1%, B=3950

Plug & Play home automation KIT with 1 energy meter and DomBus34 module that permits to manage up to 4 energy meters, control 2 loads (relays) and check 230V voltage presence.

Nice gift to start home automation systems, for students and people with some skills.
Plug & Play KIT using Rock PI S mini computer with metal case, already equipped with high quality 32GB memory card, Debian Linux, Domoticz, firewall, backup, a RS485 to USB adapter and a DomBusTH domotic module.

Meanwell HDR-15-12 compatible 12V 15W power supply, DIN rail 1 module (16.5mm width). 100-240Vin 50-60Hz, 10.8-13.8 Vout (adjustable) 1.25A max current.

Starter kit for your home automation system!

Content:

• 1x Raspberry PI4 + original plastic case


• 1x 32gb high-endurance microSD already programmed with Raspbian + Domoticz + Firewall + Backup


• 1x RS485-to-USB adapter


• 1x Creasol DomBus31 (8 relay outputs)


• 1x Creasol DomBusTH (temperature+relative humidity sensor, white+red+green leds, 4 inputs, 2 outputs, 1 analog input)


• 1x Power supply unit, 13.8V 8A output, with 12V battery charger and UPS function


• 1x DC/DC converter, 12-24V input, 5V 3A (15W) output with USB type-C connector



It's possible to replace the Domoticz software with Home Assistant Core or other type of software of your choice, using Linux Raspbian OS.

DC/DC switching converter with 8-20V input, 5V 3A output with USB Type-C connector

13.8V 8A power supply with 12V lead acid battery charger (UPS function)

DIN-rail modular 25A 230V 2P contactor with 230Vac coil with only 1.2W coil power.

Can be used with DomBus23 and DomBus31 domotic modules.
It can also be controlled by DomBusTH and DomBus12 through the DomRelay2 module.

WiFicontroller ESP8266 original WeMos D1 Mini, 4MB flash.
Can be used to integrate sensors and I/O that can be remotely controlled by Domoticz or other controllers, by HTTP and MQTT.
Uses the chip ESP8266-12E with USB interface CH340G.
Integrates GPIO, PWM, ADC, I2C, 1-Wire,...

Completed with pin header, male and female, provided apart (to be soldered, if needed)

Starter kit for your home automation system!

Content:

• 1x Raspberry PI4 genuine (without case)
• 1x 32gb high-endurance microSD already programmed with Raspbian + Domoticz + Firewall + Backup
• 1x RS485-to-USB adapter
• 1x Creasol DomBus1 (2 relay outputs, 6 inputs, 1 AC input)
• 1x Creasol DomBusTH (temperature+relative humidity sensor, white+red+green leds, 4 inputs, 2 outputs, 1 analog input)

USB cable, 1m long, with switch.
Type-A male USB connector on one side, Type-C male USB connector on the other side.

Suitable for Raspberry PI 4 , modern smartphones and other devices.

Compact power supply with EU plug, 5V 3000mA, optimal for Raspberry PI 4 and for fast battery charging.

Output voltage: 5V

Output current: 3A.

EU plug.

No USB cable.

Ultrasonic distance sensor for arduino, domoticz, raspberry pi, Creasol DomBus1.

Waterproof sensor with 2.5m cable connected to the electronic board, that transmits a pulse which duration is proportional with the distance between sensor and reflecting surface.

Can be used to measure level of water or other liquid inside a tank, for example.

Can be easily interface with Raspberry + Domoticz using Creasol DomBus1 as interface.

WiFicontroller ESP8266 NodeMcu V3, already programmed with ESPEasy firmware, accessible via web, ready to be used with Domoticz controller.
Can be used to integrate sensors and I/O that can be remotely controlled by Domoticz.
Uses the chip ESP8266-12E with USB interface CH340G.
Integrates GPIO, PWM, ADC, I2C, 1-Wire,...

Compact switching mode power supply, voltage regulator.

Output current: 2A.

Vin: from 0.85 to 12Vdc.

Vout: from 1.5 to 33Vdc, regulated by trimming the potentiometer knob.

Drop-out voltage: 1.5V.

Size: 18x10x4mm

Alkaline battery for remote controls, 12V 60mAh. 27x10mm. Used in several remote controls, but NOT USED in creasol remote controls!
