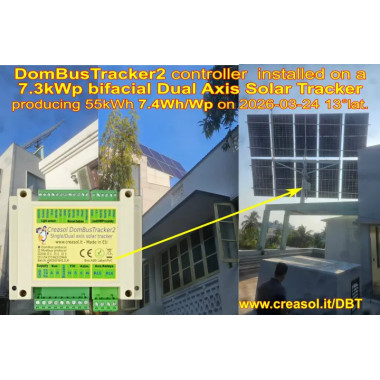

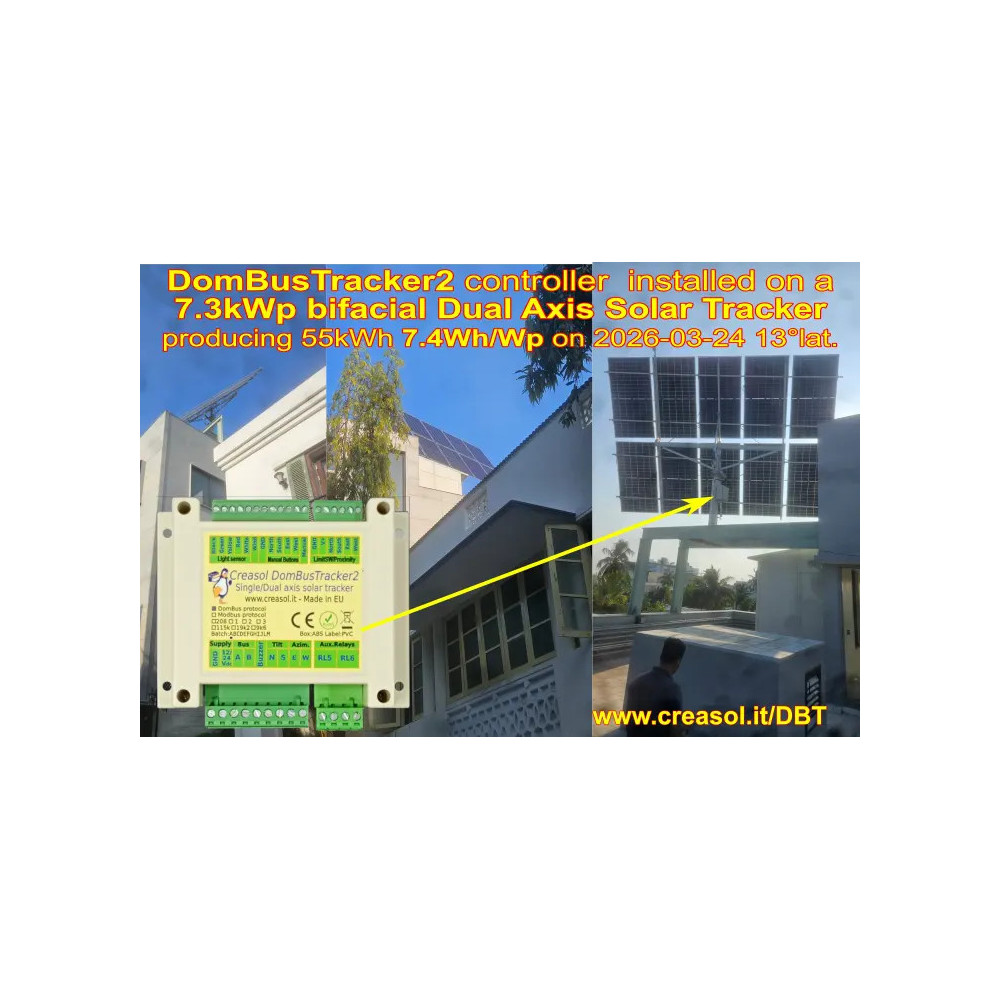

Single and dual axis sun tracker controller, working in stand-alone and also working with home automation systems like Domoticz, HomeAssistant, NodeRED, Modbus, ...
Home automation module that can be used as a stand-alone tracker, working autonomously.
Can also be controlled by a home automation system, like Domoticz (DomBusTracker version with DomBus protocol firmware), Home Assistant, Node-RED, OpenHAB, ... (DomBusTracker version with Modbus protocol firmware).
Dual axis solar tracker
Sun tracker is very good for photovoltaic systems because enhances the total production energy and, moreover, increases the power during the early morning and late afternoon, when energy is more expensive and less available.
The following chart shows the comparison of the energy produced in a sunny day, October 31 2024, in the Northern Italy, between a 2-axis solar tracker and a photovoltaic on the roof.
Comparing the two systems, we can say that in these conditions the 2-axis tracker performs almost 3 times over photovoltaic on the roof . Normally it performs almost twice a photovoltaic system on a roof oriented to South, with a normal tilt for italian houses (around 15 degrees).
This controller is based on the chinese XMYC-3 controller, using the same sun sensor, but adding some features like the automatic detection of the limit switches inside the motors (linear actuators have limit switches inside, that cut-off power), home automation system integration (you may choose between the DomBus proprietary protocol working with Domoticz, and Modbus standard protocol working with almost any domotic controller) and automatic return to night position.
Use a standard waterproof sun sensors made by 4 photodetectors, to determine the best tilt/azimuth even in case of clouds.
4x 10A relays permit to control 2 linear actuators with 800kg force (or similar), supplied by a 24V (preferred) or 12V power supply unit.
Current sensing to automatically detect the linear actuator internal limit switches.
Additional 6 analog/digital inputs, that can be connected to NTC, energy meters, wind speed meter, ...
2x 10A additional relays, to enable/disable the power supply unit (saving energy consumption during the night) and more.
1x AC optoisolated input to detect (and notify) power outages
Internal RS485 bus terminating resistor (150 ohm) that can be enabled by a PCB jumper (with a solder iron)
RS485 bus, that works with up to 500m of cable (using standard alarm cable: 2x0.50+2x0.22mm² + shield)
DIN rail low-profile enclosure, 115x90x40mm
Plugin terminal block for easy wiring
Parameters configurable by RS485 bus, to work with almost any tracking system
Available with 2 firmwares of your choice:
DomBus firmware, working with Domoticz, implementing the DomBus proprietary protocol
Modbus firmware, working with NodeRED, Home Assistant, OpenHAB and many other controllers supporting the standard Modbus protocol.
Very low power usage: 15mW with relays OFF.
Supplied with 2 power resistors 5W for current sensing (to detect motor internal limit switches), 2 varistors 33V to avoid overvoltages on motor coils and 27 Ohm resistor to supply the sun sensor
