RCCB Tipo B 4P 400 V, 40 A, para cargadores de pared y vehículos trifásicos

RCCB Tipo B 4P 400 V, 40 A, para cargadores de pared y vehículos trifásicos

0 Comentario(s)

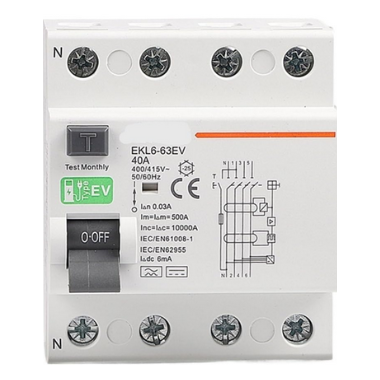

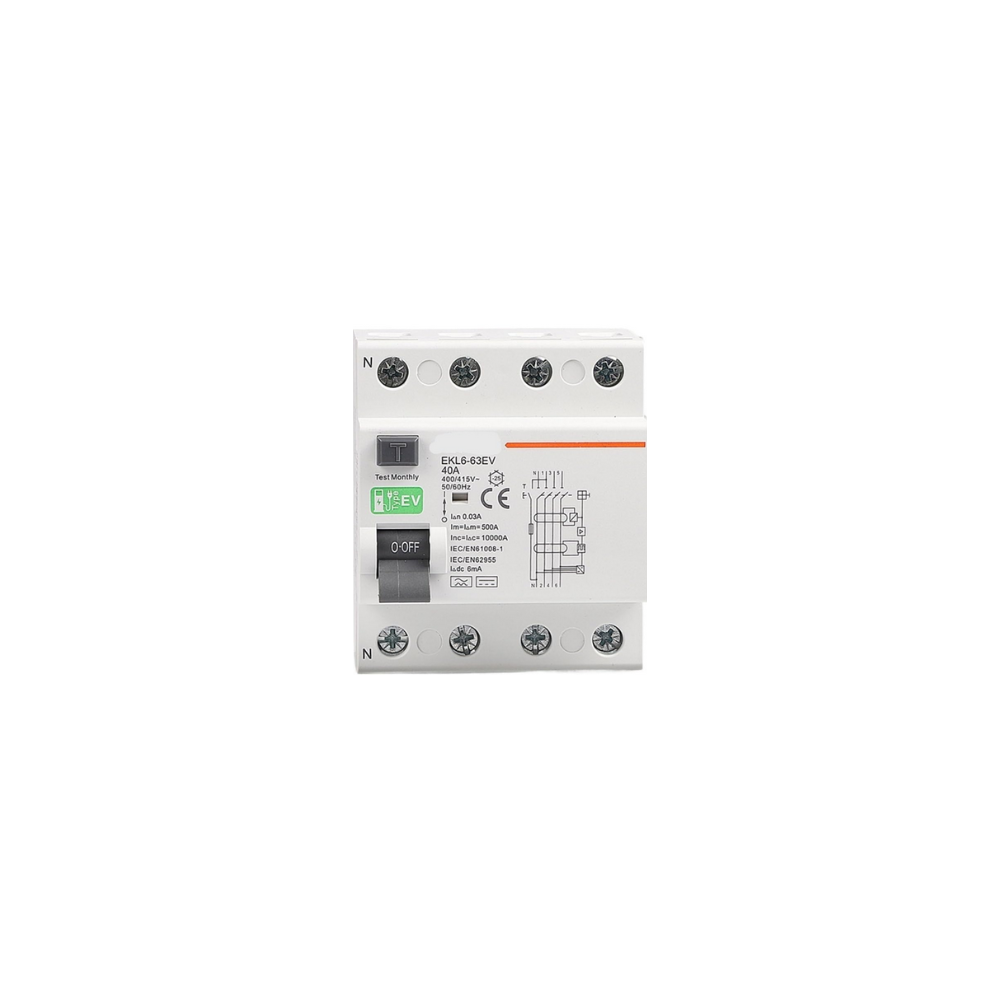

Interruptor diferencial residual (RCCB) tipo EV o tipo B, trifásico, 400V 40A para estaciones de recarga de vehículos eléctricos y wallbox, con corriente de protección 30mA AC y 6mA DC.
Cumple con IEC/EN61008-1 y IEC/EN62423.

OEM
rcdtypeb4p40a
80,52 €
Impuestos incluidos Enviado en 1 día laborable
Cantidad
Últimas unidades en stock

  Soporte completo: ¡la mayoría de los productos están diseñados por nosotros!

Email: store@creasol.it - Telegram: CreasolTech - Whatsapp: +393283730010

  Los pedidos se envían en 1 día laborable

Correo prioritario: rápido y económico - Mensajería ur

  24 meses de garantía, fácil devolución/reembolso

¡Contáctenos antes de devolver productos!

Interruptor diferencial de corriente residual (RCCB) tipo EV o tipo B 400 V 40 A para Estaciones de carga de vehículos eléctricos trifásicos y wallbox, con corriente de protección 30mA AC y 6mA DC.

Cumple con IEC/EN61008-1 y IEC/EN62423 (CE, RoHS, TUV).

Making a wallbox using DomBusEVSE domotic module

Se puede utilizar para construir un punto de carga de vehículos eléctricos casero (estación de carga, wallbox), utilizando

* este RCD - RCCB como protección

* Contactor 25A 4P (disponible en este sitio web)

* Creasol DomBusEVSE como equipo de suministro de vehículos eléctricos (se utiliza para controlar la potencia/corriente de carga) (disponible en este sitio web)

* un cable tipo 2 o tipo 1 y una caja pequeña

* un medidor de energía (tipo bidireccional, si se utilizan fuentes fotovoltaicas u otras fuentes renovables) para medir la energía disponible para la carga de vehículos eléctricos

* opcionalmente un medidor de energía para contar la energía cargada en la batería del vehículo

* una caja de riel DIN, mejor si se coloca en el interior

Usando Módulo de carril DIN Creasol DomBusEVSE Es posible realizar una Estación de carga eléctrica con todas las funciones con las siguientes características:
* El wallbox puede ser monitoreado y controlado por teléfono inteligente y navegador web

* Integración completa con sistemas de automatización del hogar como Domoticz, Home Assistant, Node-RED, OpenHAB, ioBroker y otros sistemas compatibles con Modbus y MQTT

* equilibrio de carga inteligente

* carga utilizando únicamente energía solar fotovoltaica

* utiliza el toda la potencia que ofrece su proveedor:por ejemplo en Italia es posible utilizar la potencia contractual + 27% durante un máximo de 90 minutos, luego la potencia debe reducirse a la potencia contractual + 10% durante al menos 90 minutos, luego se puede volver a la potencia contractual + 27% y así sucesivamente...

Más información en https://www.creasol.it/EVSE

Este tipo de instalaciones deben ser realizadas por un técnico electricista con plenos conocimientos sobre electricidad y riesgos térmicos, utilizando cables y conexiones adecuadas para evitar incendios, cortocircuitos, descargas, ....

Características (pueden cambiar en el futuro):

Type-B RCD for electric vehicle charging station, by Creasol




Smart-Home Creasol DomBus modules for Domoticz, Home Assistant, Node-RED, OpenHAB, ...

The following video shows a presentation of some domotic modules designed and produced in Italy by Creasol to make a reliable, easy and power-optimized home automation system.


The next video shows our Smart EVSE module that can be used to charge the electric car by using only solar power, or adding 25/50/75/100% of available power from the electrical grid.

Our industrial and home automation modules are designed to be

  • very low power (around 10mW with relays OFF)
  • reliable (no disconnections)
  • bus connected (no radiofrequency interference, no battery to replace).

Modules are available in two version:

  1. with DomBus proprietary protocol, working with Domoticz only
  2. with Modbus standard protocol, working with Home Assistant, OpenHAB, Node-RED
Home automation system using DomBus modules

Store website - Information website

For our products we can offer FULL SUPPORT and CUSTOMIZATION: please contact us by Email or Telegram

DomBusEVSE - EVSE module to build a Smart Wallbox / EV charging station

DomBusEVSE smart EVSE module to make a Smart Wallbox EV Charging station Complete solution to make a Smart EVSE, charging the electric vehicle using only energy from renewable source (photovoltaic, wind, ...), or adding 25-50-75-100% of available power from the grid.

  • Single-phase and three-phases, up to 36A (8kW or 22kW)
  • Needs external contactor, RCCB (protection) and EV cable
  • Optional power meter to measure charging power, energy, voltage and power factor
  • Optional power meter to measure the power usage from the grid (not needed if already exists)
  • Two max grid power thresholds can be programmed: for example, in Italy who have 6kW contractual power can drain from the grid Max (6* 1.27)=7.6kW for max 90 minutes followed by (6* 1.1)=6.6kW for another 90 minutes. The module can use ALL available power when programmed to charge at 100%.
  • Works without the domotic controller (stand-alone mode), and can also work with charging current set by the domotic controller (managed mode)

DomBusTH - Compact board to be placed on a blank cover, with temperature and humidity sensor and RGW LEDs

DomBusTH domotic board with temperature and humidity sensor, 3 LEDs, 6 I/O Compact board, 32x17mm, to be installed on blank cover with a 4mm hole in the middle, to exchange air for the relative humidity sensor. It can be installed in every room to monitor temperature and humidity, check alarm sensors, control blind motor UP/DOWN, send notifications (using red and green leds) and activate white led in case of power outage.

Includes:

  • temperature and relative humidity sensor
  • red, green and white LEDs
  • 4 I/Os configurable as analog or digital inputs, pushbuttons, counters (water, gas, S0 energy, ...), NTC temperature and ultrasonic distance sensors
  • 2 ports are configured by default as open-drain output and can drive up to 200mA led strip (with dimming function) or can be connected to the external module DomRelay2 to control 2 relays; they can also be configured as analog/digital inputs, pushbuttons and distance sensors.

DomBus12 - Compact domotic module with 9 I/Os

DomBus12 domotic module with 9 I/O Very compact, versatile and cost-effective module with 9 ports. Each port can be configured by software as:

  • analog/digital inputs
  • pushbutton and UP/DOWN pushbutton
  • counters (water, gas, S0 energy, ...)
  • NTC temperature and ultrasonic distance sensors
  • 2 ports are configured by default as open-drain output and can drive up to 200mA led strip (with dimming function) or can be connected to the external module DomRelay2 to control 2 relays.

DomBus21 - Power optimized module with 3 High Power latching relays, 1 AC input and 4 low voltage inputs

DomBus21 module with 3 high power latching relays Very low power consumption module designed to enable up to 3 high power loads, up to 15A (3kW).

  • 3x high power latching relays SPST 15A: latching relay consumes nothing when ON
  • 1x 230V AC opto-isolated input used as power outage detector, and also as zero-crossing detector to permit switching relays On/Off minimizing in-rush current (for capacitive loads) and overvoltage (for inductive loads)
  • 4x low voltage inputs, that can be connected to pushbuttons, switches, meters with pulsed output, NTC temperature sensors, ...

DomBus23 - Domotic module with many functions

DomBus23 domotic module with many functions Versatile module designed to control gate or garage door.

  • 2x relays SPST 5A
  • 1x 10A 30V mosfet (led stripe dimming)
  • 2x 0-10V analog output: each one can be configured as open-drain output to control external relay
  • 2x I/O lines, configurable as analog/digital inputs, temperature/distance sensor, counter, ...
  • 2x low voltage AC/DC opto-isolated inputs, 9-40V
  • 1x 230V AC opto-isolated input

DomBus31 - Domotic module with 8 relays

DomBus31 domotic module with 8 relay outputs DIN rail low profile module, with 8 relays and very low power consumption:

  • 6x relays SPST 5A
  • 2x relays STDT 10A
  • Only 10mW power consumption with all relays OFF
  • Only 500mW power consumption with all 8 relays ON !!

DomBus32 - Domotic module with 3 relays

DomBus32 domotic module with 3 relay outputs Versatile module with 230V inputs and outputs, and 5 low voltage I/Os.

  • 3x relays SPST 5A
  • 3x 115/230Vac optoisolated inputs
  • Single common for relays and AC inputs
  • 5x general purpose I/O, each one configurable as analog/digital inputs, pushbutton, counter, temperature and distance sensor.

DomBus33 - Module to domotize a light system using step relays

DomBus33 domotic module with 3 relay outputs that can control 3 lights Module designed to control 3 lights already existing and actually controlled by 230V pushbuttons and step-by-step relays. In this way each light can be activated by existing pushbuttons, and by the domotic controller.

  • 3x relays SPST 5A
  • 3x 115/230Vac optoisolated inputs
  • Single common for relays and AC inputs
  • 5x general purpose I/O, each one configurable as analog/digital inputs, pushbutton, counter, temperature and distance sensor.

Each relay can toggle the existing step-relay, switching the light On/Off. The optoisolator monitors the light status. The 5 I/Os can be connected to pushbuttons to activate or deactivate one or all lights.

DomBus36 - Domotic module with 12 relays

DomBus36 domotic module with 12 relay outputs DIN rail module, low profile, with 12 relays outputs and very low power consumption.

  • 12x relays SPST 5A
  • Relays are grouped in 3 blocks, with a single common per block, for easier wiring
  • Only 12mW power consumption with all relays OFF
  • Only 750mW power consumption with all 12 relays ON !!

DomBus37 - 12 inputs, 3 115/230Vac inputs, 3 relay outputs

DomBus37 domotic module with 12 inputs, 3 AC inputs, 3 relay outputs Module designed to be connected to alarm sensors (magnetc contact sensors, PIRs, tampers): it's able to monitor mains power supply (power outage / blackout) and also have 3 relays outputs.

  • 12x low voltage inputs (analog/digital inputs, buttons, alarm sensors, balanced double/triple biased alarm sensors, counters, temperature and distance sensors, ...)
  • 3x 115/230Vac optoisolated inputs
  • 2x relays SPST 5A
  • 1x relay SPST 10A

DomBus38 - 4 SPDT 10A relays, 2 SPST 10A relays, 1 AC input, 12 low voltage inputs

DomBus38 domotic module with 12 inputs, 1 AC input, 6 relay outputs DIN rail module designed for burglar alarm system.

  • 4x relays SPDT (normally open + close contacts), 10A
  • 2x relays SPST 10A
  • 1x 115/230Vac optoisolated inputs, that can be used to monitor 230V voltage presence (blackout detector) and it's also used as zero-crossing detector to minimize in-rush current and overvoltage when a relay switches On/Off
  • 12x low voltage inputs (analog/digital inputs, buttons, alarm sensors, balanced double/triple biased alarm sensors, counters, temperature and distance sensors, ...)

DomBusTracker - Smart dual-axis sun tracker to optimize photovoltaic production

DomBusTracker domotic module that controls a dual-axis solar tracker motors DIN rail module that control azimuth + elevation/tilt motors of a sun tracker, to maximize photovoltaic energy production during the day and seasons.

  • Uses a deep-hole sun sensor, to optimize production with both sunny and cloudy weather
  • Works in stand-alone mode (no need for external controller)
  • Can be connected to Domoticz for monitoring and controlling the motors position

DomRelay2 - 2x relays board

Relay board with 2 relays, to be used with DomBus domotic modules Simple module with 2 relays, to be used with DomBus modules or other electronic boards with open-collector or open-drain outputs

  • 2x 5A 12V SPST relays (Normally Open contact)
  • Overvoltage protection (for inductive loads, like motors)
  • Overcurrent protection (for capacitive laods, like AC/DC power supply, LED bulbs, ...)

DomESP1 / DomESP2 - Board with relays and more for ESP8266 NodeMCU WiFi module

Relay board for ESP8266 NodeMCU module IoT board designed for NodeMCU v3 board using ESP8266 WiFi microcontroller

  • 9-24V input voltage, with high efficiency DC/DC regulator with 5V output
  • 4x SPST relays 5V with overvoltage protection
  • 1x SSR output (max 40V output)
  • 2x mosfet output (max 30V, 10A) for LED dimming or other DC loads
  • 1x I²C interface for sensors, extended I/Os and more)
  • 1x OneWire interface (DS18B20 or other 1wire sensors/devices)
