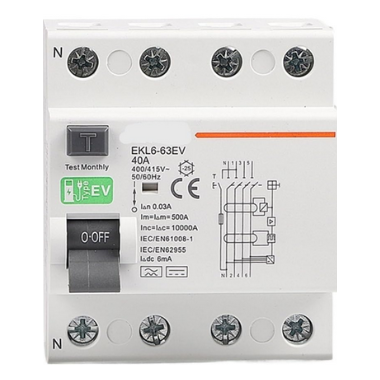

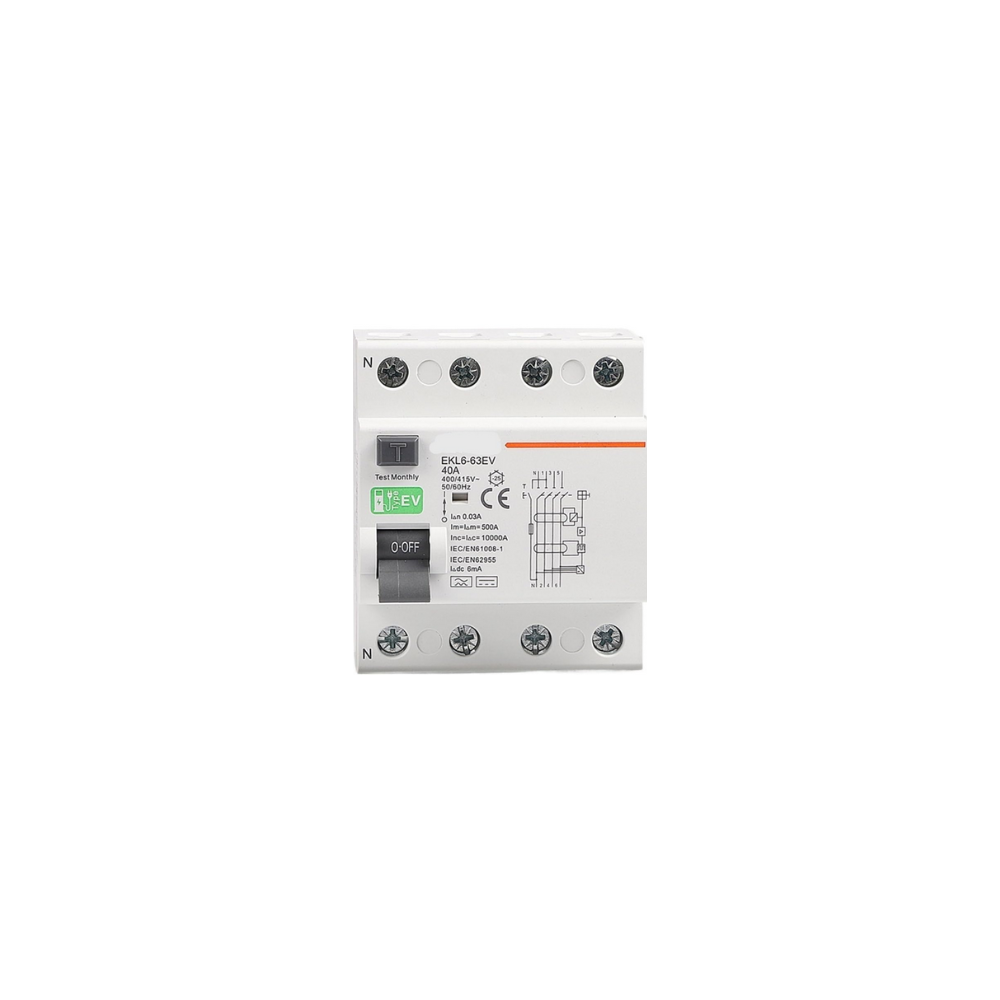

Strāvas noplūdes slēdzis (RCCB), EV vai B tips, trīs fāzes, 400 V 40 A elektrotransportlīdzekļu uzlādes stacijām un uzlādes kastēm, ar aizsardzības strāvu 30 mA maiņstrāvai un 6 mA līdzstrāvai.
Atbilst IEC/EN61008-1 un IEC/EN62423 standartiem.
Email: store@creasol.it - Telegram: CreasolTech - Whatsapp: +393283730010
Prioritārais pasts: ātri un lēti - Express kurjer
Pirms preču atgriešanas sazinieties ar mums!
Atlikušās strāvas ķēdes pārtraucējs (RCCB) EV tips vai B tips 400 V 40 A paredzēts trīsfāžu elektrotransportlīdzekļu uzlādes stacijas un sienas uzlādes kārbaar aizsardzības strāvu 30 mA maiņstrāva un 6 mA līdzstrāva.
Atbilst IEC/EN61008-1 un IEC/EN62423 (CE, RoHS, TUV) standartiem.
To var izmantot, lai izveidotu paštaisītu elektromobiļu uzlādes punktu (uzlādes staciju, uzlādes ierīci), izmantojot
* šis RCD - RCCB kā aizsardzība
* 25A 4P kontaktors (pieejams šajā tīmekļa vietnē)
* Creasol DomBusEVSE kā elektrotransportlīdzekļu piegādes aprīkojums (izmanto uzlādes jaudas/strāvas kontrolei) (pieejams šajā tīmekļa vietnē)
* viens 2. vai 1. tipa kabelis un neliela kaste
* viens enerģijas skaitītājs (divvirzienu tipa, ja tiek izmantoti fotoelektriskie vai citi atjaunojamie avoti), lai mērītu pieejamo jaudu elektrotransportlīdzekļu uzlādei
* pēc izvēles viens enerģijas skaitītājs, lai uzskaitītu transportlīdzekļa akumulatorā uzpildīto enerģiju
* viena DIN sliedes kārba, labāk novietot iekštelpās
Izmantojot Creasol DomBusEVSE DIN sliedes modulis ir iespējams realizēt pilnvērtīga elektriskās uzlādes stacija ar šādām funkcijām:
* sienas kārba var būt uzraudzīts un kontrolēts, izmantojot viedtālruni un tīmekļa pārlūkprogrammu
* pilnīga integrācija ar mājas automatizācijas sistēmām, piemēram, Domoticz, Home Assistant, Node-RED, OpenHAB, ioBroker un citas sistēmas, kas atbalsta Modbus un MQTT
* vieda slodzes līdzsvarošana
* uzlāde, izmantojot tikai saules enerģiju no fotoelektriskajiem elementiem
*izmantojiet pilna jauda, ko piedāvā jūsu piegādātājsPiemēram, Itālijā līgumā noteikto jaudu + 27 % var izmantot ne ilgāk kā 90 minūtes, pēc tam jauda jāsamazina līdz līgumā noteiktajai jaudai + 10 % vismaz uz 90 minūtēm, pēc tam var atgriezties pie līgumā noteiktās jaudas + 27 % utt.
Vairāk informācijas vietnē https://www.creasol.it/EVSE
Šāda veida instalācijas jāveic elektrotehniķim ar pilnīgām zināšanām par elektrības un termiskajiem riskiem, izmantojot atbilstošus kabeļus un savienojumus, lai novērstu ugunsgrēku, īssavienojumus, triecienus utt.
Funkcijas (var mainīties nākotnē):
The following video shows a presentation of some domotic modules designed and produced in Italy by Creasol to make a reliable, easy and power-optimized home automation system.
The next video shows our Smart EVSE module that can be used to charge the electric car by using only solar power, or adding 25/50/75/100% of available power from the electrical grid.
Our industrial and home automation modules are designed to be
Modules are available in two version:
Store website - Information website
For our products we can offer FULL SUPPORT and CUSTOMIZATION: please contact us by Email or Telegram
Complete solution to make a Smart EVSE, charging the electric vehicle using only energy from renewable source (photovoltaic, wind, ...), or adding 25-50-75-100% of available power from the grid.
Compact board, 32x17mm, to be installed on blank cover with a 4mm hole in the middle, to exchange air for the relative humidity sensor. It can be installed in every room to monitor temperature and humidity, check alarm sensors, control blind motor UP/DOWN, send notifications (using red and green leds) and activate white led in case of power outage.
Includes:
Very compact, versatile and cost-effective module with 9 ports. Each port can be configured by software as:
Very low power consumption module designed to enable up to 3 high power loads, up to 15A (3kW).
Versatile module designed to control gate or garage door.
DIN rail low profile module, with 8 relays and very low power consumption:
Versatile module with 230V inputs and outputs, and 5 low voltage I/Os.
Module designed to control 3 lights already existing and actually controlled by 230V pushbuttons and step-by-step relays. In this way each light can be activated by existing pushbuttons, and by the domotic controller.
Each relay can toggle the existing step-relay, switching the light On/Off. The optoisolator monitors the light status. The 5 I/Os can be connected to pushbuttons to activate or deactivate one or all lights.
DIN rail module, low profile, with 12 relays outputs and very low power consumption.
Module designed to be connected to alarm sensors (magnetc contact sensors, PIRs, tampers): it's able to monitor mains power supply (power outage / blackout) and also have 3 relays outputs.
DIN rail module designed for burglar alarm system.
DIN rail module that control azimuth + elevation/tilt motors of a sun tracker, to maximize photovoltaic energy production during the day and seasons.
Simple module with 2 relays, to be used with DomBus modules or other electronic boards with open-collector or open-drain outputs
IoT board designed for NodeMCU v3 board using ESP8266 WiFi microcontroller
