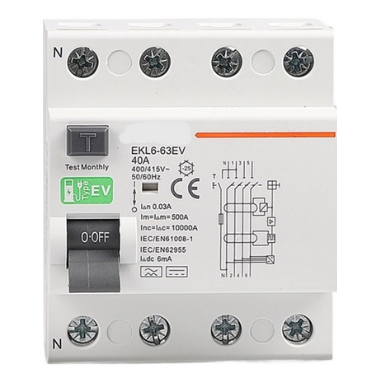

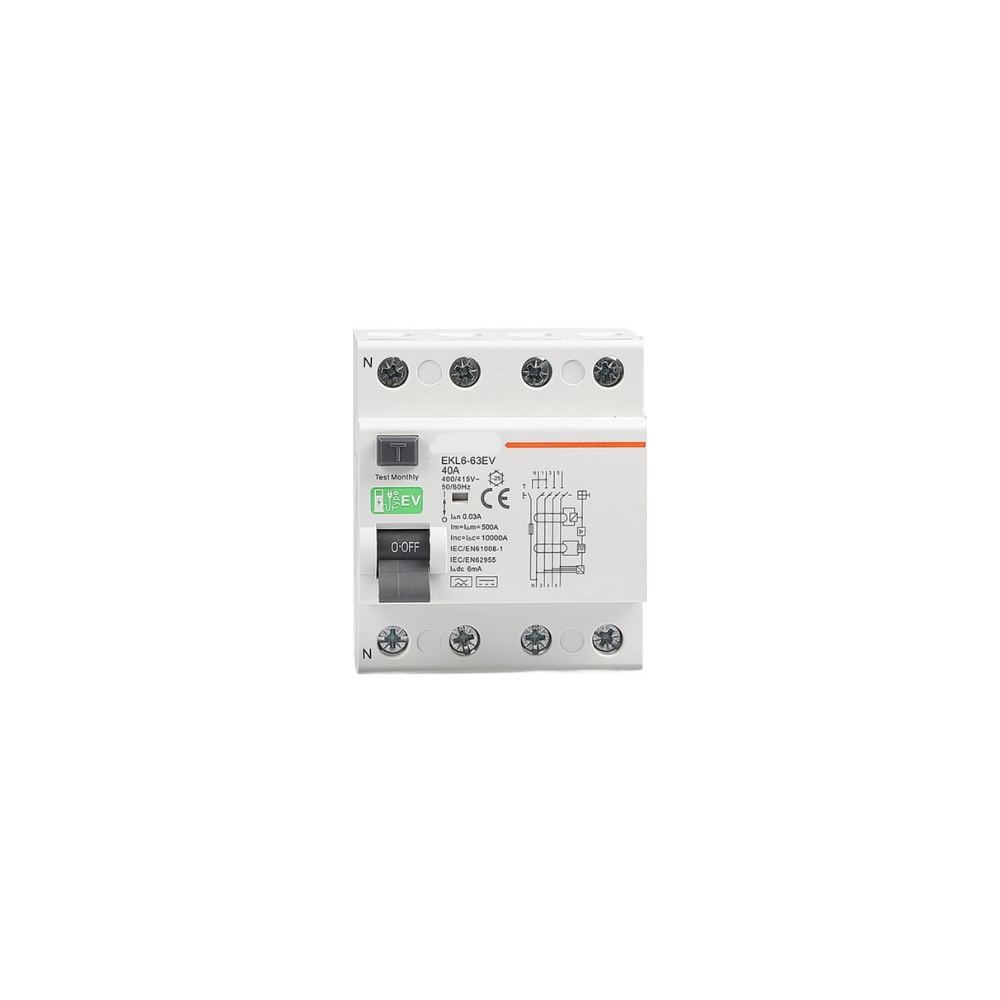

Fehlerstrom-Schutzschalter (RCCB) Typ EV oder Typ B, dreiphasig, 400 V, 40 A für Ladestationen und Wallboxen für Elektrofahrzeuge, mit Schutzstrom 30 mA AC und 6 mA DC.
Konform mit IEC/EN61008-1 und IEC/EN62423.
Email: store@creasol.it - Telegram: CreasolTech - Whatsapp: +393283730010
Priority Mail: schnell und günstig – Exp
Kontaktieren Sie uns, bevor Sie Produkte zur
Fehlerstromschutzschalter (RCCB) Typ EV oder Typ B 400V 40A für dreiphasige Ladestationen und Wallboxen für Elektrofahrzeuge, mit Schutzstrom 30 mA AC und 6 mA DC.
Entspricht IEC/EN61008-1 und IEC/EN62423 (CE, RoHS, TÜV).
Es kann verwendet werden, um eine selbstgebaute Ladestation für Elektrofahrzeuge (Ladestation, Wallbox) zu bauen, mit
* dieser RCD - RCCB als Schutz
* 25A 4P-Schütz (auf dieser Website verfügbar)
* Creasol DomBusEVSE als Ladeeinrichtung für Elektrofahrzeuge (zur Steuerung der Ladeleistung/des Ladestroms) (auf dieser Website verfügbar)
* ein Typ-2 oder Typ-1 Kabel und eine kleine Box
* ein Energiezähler (bidirektionaler Typ, bei Verwendung von Photovoltaik oder anderen erneuerbaren Quellen) zur Messung der verfügbaren Leistung zum Laden von Elektrofahrzeugen
* optional ein Energiezähler zur Zählung der in der Fahrzeugbatterie gefüllten Energie
* eine DIN-Schienendose, besser im Innenbereich
Verwenden Creasol DomBusEVSE DIN-Schienenmodul es ist möglich, eine voll ausgestattete Elektroladestation mit folgenden Features:
* Wallbox kann Überwachung und Steuerung per Smartphone und Webbrowser
* vollständige Integration mit Hausautomationssystemen wie Domoticz, Home Assistant, Node-RED, OpenHAB, ioBroker und andere Systeme, die Modbus und MQTT unterstützen
* intelligenter Lastenausgleich
* Laden ausschließlich mit Solarenergie aus Photovoltaik
* verwenden Sie die volle Leistung Ihres Anbieters: In Italien ist es beispielsweise möglich, die vertraglich vereinbarte Leistung + 27 % für maximal 90 Minuten zu nutzen, dann muss die Leistung für mindestens 90 Minuten auf die vertraglich vereinbarte Leistung + 10 % reduziert werden, dann kann zur vertraglich vereinbarten Leistung + 27 % zurückgekehrt werden und so weiter …
Mehr Infos unter https://www.creasol.it/EVSE
Derartige Installationen sollten von einem Elektrotechniker durchgeführt werden, der sich mit Elektrizität und thermischen Risiken bestens auskennt und geeignete Kabel und Anschlüsse verwendet, um Feuer, Kurzschlüsse, Stromschläge usw. zu verhindern.
Funktionen (können sich in Zukunft ändern):
