2-assige zonvolgercontroller in een compacte DIN-railbehuizing, werkt stand-alone en kan ook worden gebruikt met domoticasystemen zoals Domoticz, HomeAssistant, NodeRED, Modbus, ...
Volledige ondersteuning: de meeste producten zijn door ons ontworpen!
Domoticamodule die gebruikt kan worden als zelfstandige tracker, autonoom werkend.
Kan ook worden aangestuurd door een domoticasysteem, leuk vinden Domotica (DomBusTracker-versie met DomBus-protocolfirmware), Thuisassistent, Node-RED, OpenHAB, ... (DomBusTracker-versie met Modbus-protocolfirmware).
Dubbele as zonnevolger
Zonnevolger is zeer goed voor fotovoltaïsche systemen omdat verhoogt de totale productie-energie en bovendien, verhoogt het vermogen tijdens de vroege ochtend en late middag, als energie duurder en minder beschikbaar is.
De onderstaande grafiek toont een vergelijking van de energie die op een zonnige dag, 31 oktober 2024, in Noord-Italië wordt geproduceerd door een 2-assige zonnevolger en een fotovoltaïsch systeem op het dak.
Als we de twee systemen vergelijken, kunnen we zeggen dat de 2-assige tracker in deze omstandigheden bijna 3 keer presteert boven fotovoltaïsch op het dak. Normaal gesproken presteert het bijna twee keer een fotovoltaïsch systeem op een dak dat op het zuiden is gericht, met een normale hellingvoor Italiaanse huizen (ongeveer 15 graden).
Deze controller is gebaseerd op de Chinese XMYC-3 controller, die dezelfde zonnesensor gebruikt, maar een aantal functies toevoegt, zoals de automatische detectie van de eindschakelaars in de motoren (lineaire actuatoren hebben interne eindschakelaars die de stroom uitschakelen), integratie van domoticasystemen (u kunt kiezen tussen het DomBus-protocol dat met Domoticz werkt, en het Modbus-standaardprotocol dat met bijna elke domotica-controller werkt) en automatische terugkeer naar de nachtstand.
Functies

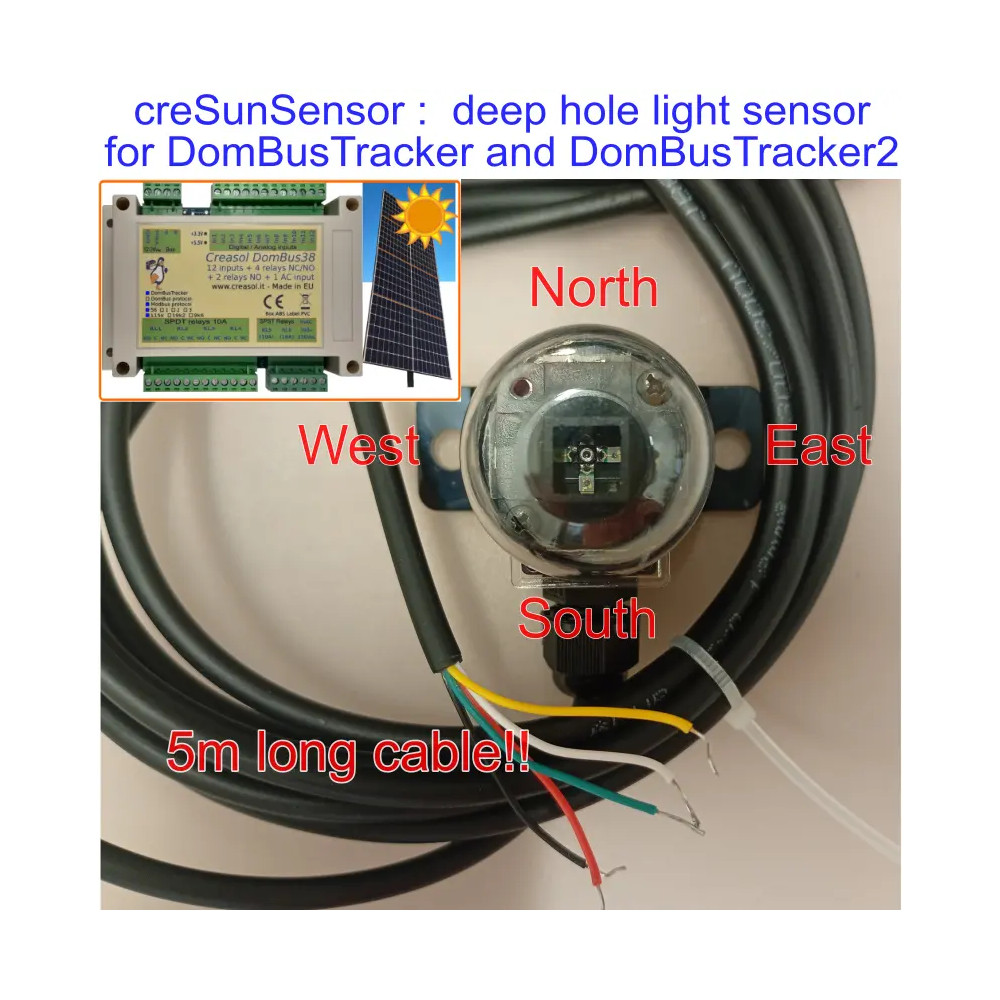

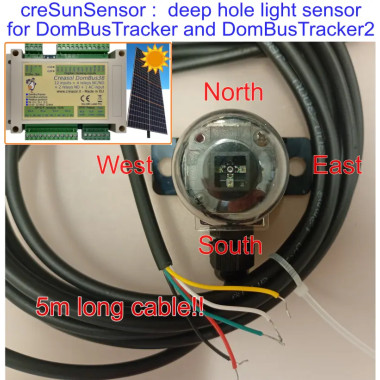

Gebruik een standaard waterdichte zonnesensoren gemaakt door 4 fotodetectoren, om de beste kanteling/azimut te bepalen, zelfs bij wolken./li>
4x 10A relais maken het mogelijk om te regelen 2 lineaire actuatoren met 800kg kracht (of iets dergelijks), gevoed door een 24V (bij voorkeur) of 12V voeding.
Stroomdetectie om automatisch de interne eindschakelaars van de lineaire actuator te detecteren.
6 extra analoge/digitale ingangen, die kunnen worden aangesloten op NTC, energiemeters, windsnelheidsmeter, ...
2x 10A extra relais, om de voeding in/uit te schakelen (energiebesparing tijdens de nacht) en meer.
1x AC opto-geïsoleerde ingang om stroomuitval te detecteren (en te melden)
Interne RS485-busafsluitweerstand (150 ohm) die kan worden ingeschakeld via een PCB-jumper (met een soldeerbout)
RS485-bus, die werkt met maximaal 500 m kabel (met behulp van standaard alarmkabel: 2x0,50+2x0,22mm² + afscherming)/li>
DIN-rail laagprofielbehuizing, 115x90x40mm
Plug-in-aansluitblok voor eenvoudige bedrading
Parameters configureerbaar via RS485-bus, om met bijna elk trackingsysteem te werken
Beschikbaar met 2 firmwares naar keuze:
DomBus-firmware, werkend met Domoticz, het DomBus-propriëtaire protocol implementerend
Modbus-firmware, werkt met NodeRED, Home Assistant, OpenHAB en vele andere controllers die het standaard Modbus-protocol ondersteunen.
Zeer laag stroomverbruik: 15mW met relais UIT.
Wordt geleverd met 2 vermogensweerstanden van 5 W voor stroomdetectie (om interne motoreindschakelaars te detecteren), 2 varistoren van 33 V om overspanningen op motorspoelen te voorkomen en een weerstand van 27 Ohm om de zonnesensor te voeden
Zonnesensor, actuatoren, 24V-voedingseenheid en zekeringbeveiliging moeten apart worden aangeschaft.
