Creasol Sender - Stationary multifrequency remote control duplicator Maximize

Creasol Sender - Stationary multifrequency remote control duplicator

Multifrequency long-range remote control duplicator which should be connected, by a pushbutton, to an external power supply. Can be used inside a car, to open gate/door, by flashing highbeam lights or brake pedal.
Copy up to 4 fixed-code remote controls, even in different frequencies.

More details

creSender
Creasol

29,04

Reduced price!

-32%

42,70 €

» Add to my wishlist

ProductFrom (qty)DiscountPrice
Creasol Sender - Stationary multifrequency remote control duplicator9 45% 23.485
Creasol Sender - Stationary multifrequency remote control duplicator6 42% 24.766
Creasol Sender - Stationary multifrequency remote control duplicator4 39% 26.047
Creasol Sender - Stationary multifrequency remote control duplicator3 37% 26.901
Creasol Sender - Stationary multifrequency remote control duplicator2 35% 27.755

Customers who bought this product also bought:

Previous
  • Creasol SenderBatt: stationary multifrequency remote control duplicator/transmitter with power failure monitor

    Creasol...


    Multifrequency long range transmitter and...

  • Antenna 434 MHz, filtered version

    Antenna 434...


    High performance filtered antenna with...

  • creasol UniRec2 - Multifrequency 2 channels universal receiver

    creasol...


    Universal multi-frequency receiver with 2 relay...

  • Creasol UniRec1 - Multifrequency 1 channel universal receiver

    Creasol...


    Multifrequency micro receiver, 1 channel,...

  • Creasol Multi - Multifrequency remote control duplicator

    Creasol...


    Remote control duplicator that is able to copy...

  • Creasol Four . 433.92 MHz long range remote control duplicator

    Creasol Four...


    Universal remote control duplicator, which is...

Next

5 other products in the same category:

Introduction Crasol Rec1Uni and LockUni: list of supported frequencies

Creasol Sender Long range remote control duplicator and transmitter

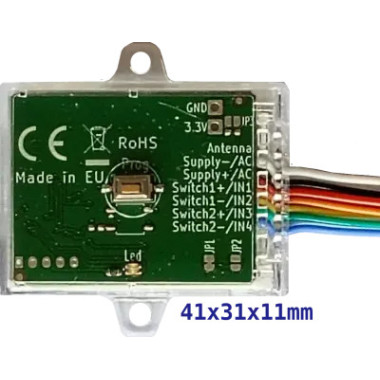

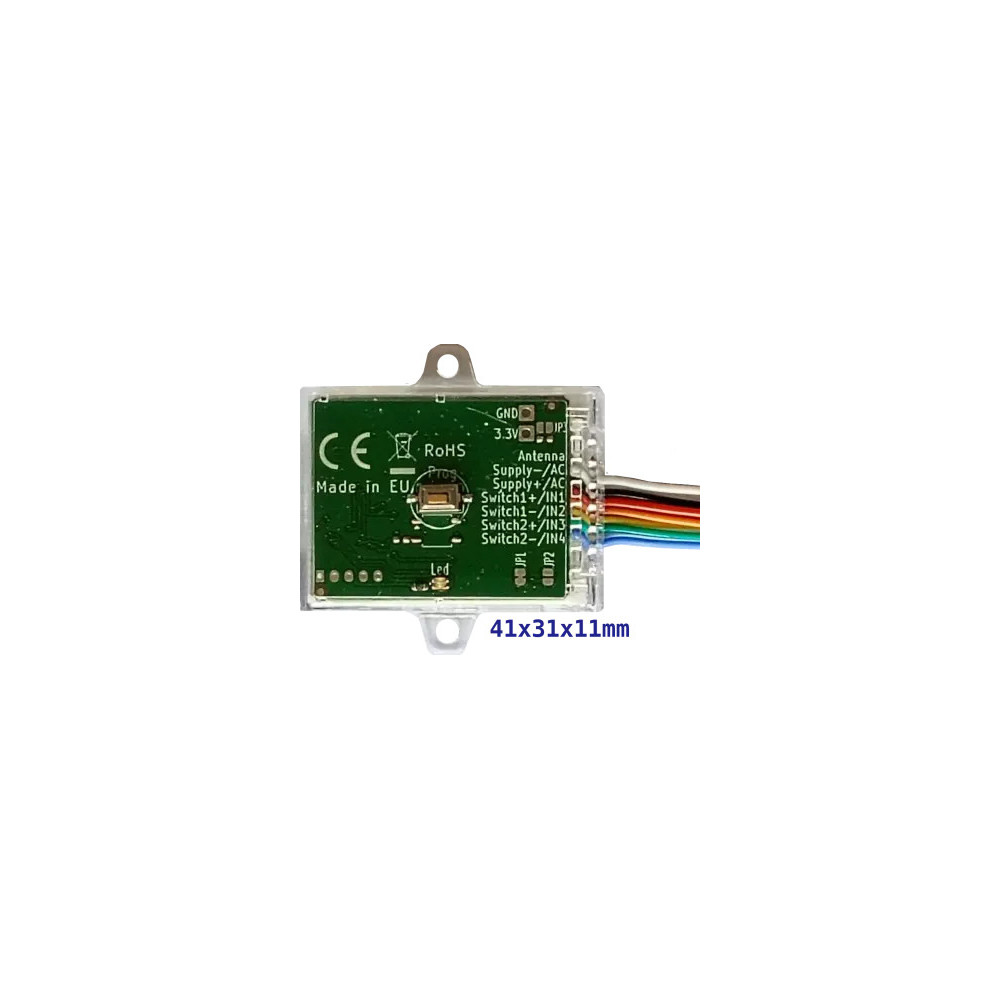

This compact remote control duplicator, only 29x29x10mm, is able to copy an original remote control which transmit a fixed code in one of the supported frequencies, listed in the Tab.1.

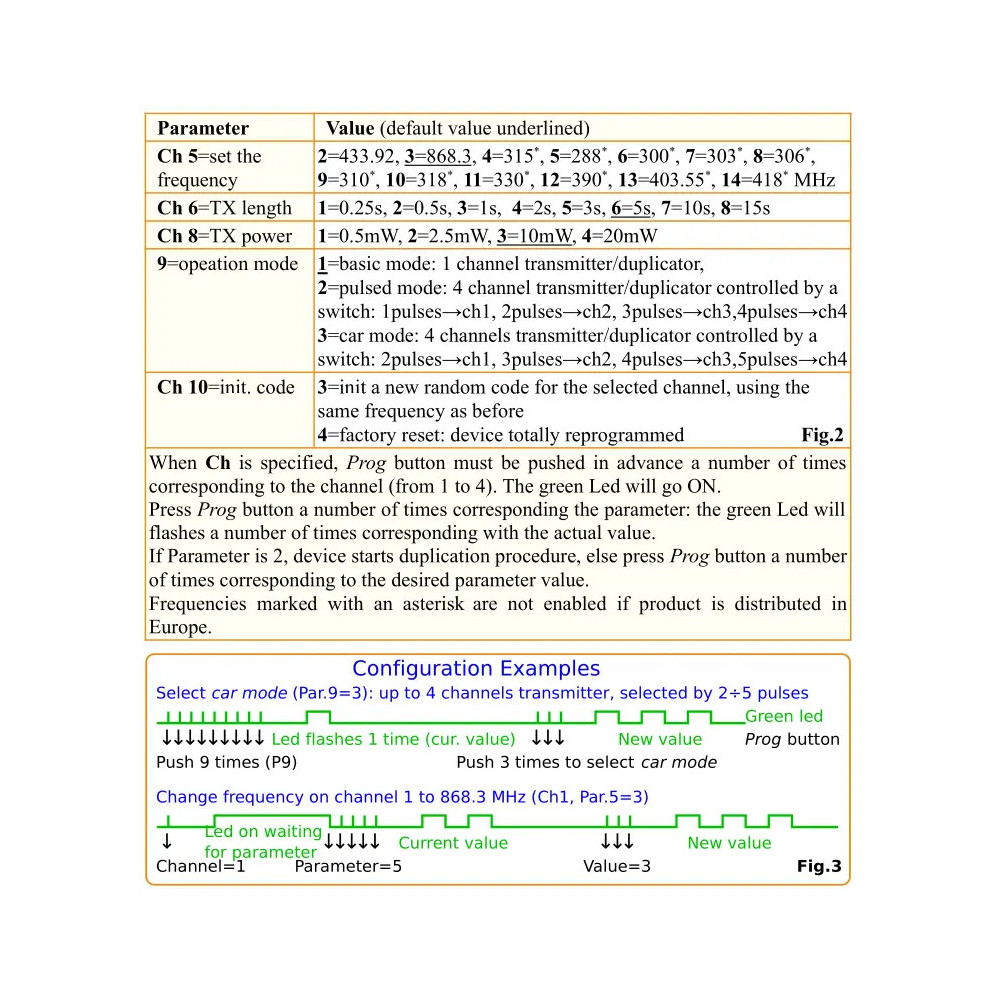

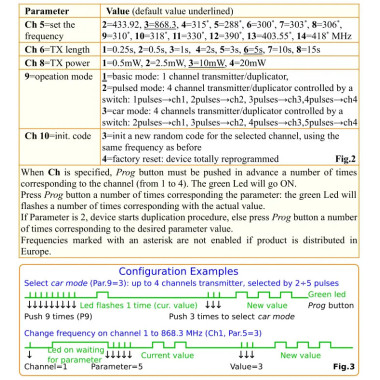

The transmission frequency, power and other parameters, can be simply programmed using the Prog button. Changing the transmission power, it is possible to minimize the interference and collisions, or maximize the distance: it has a very long range when the maximum transmission power is selected.

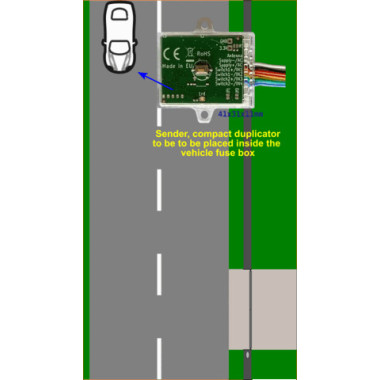

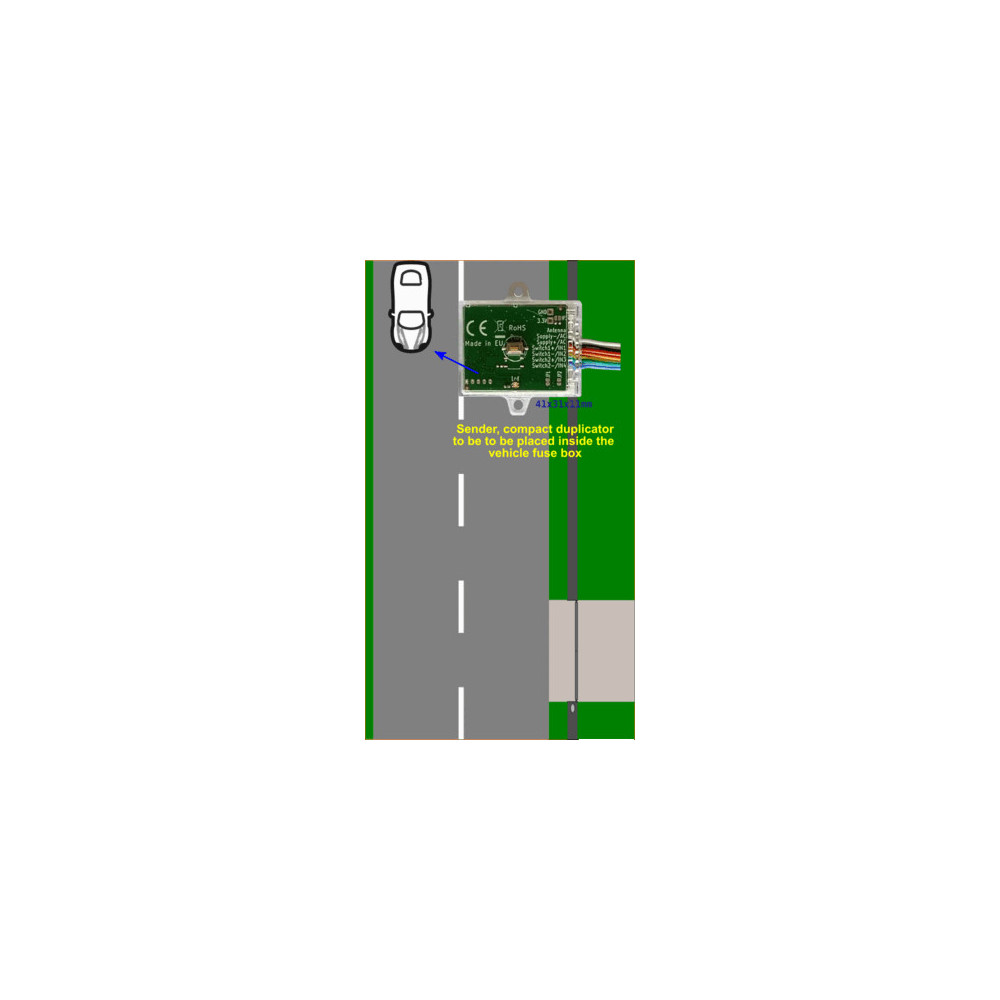

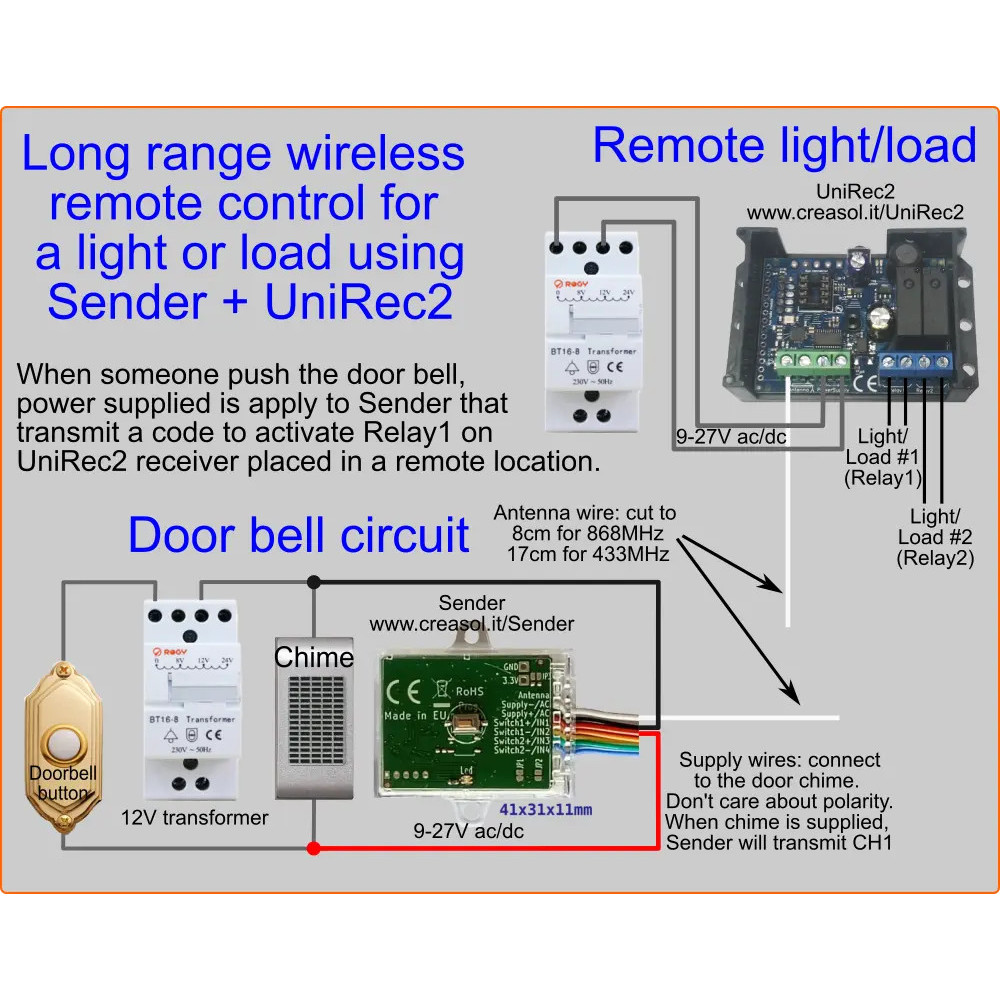

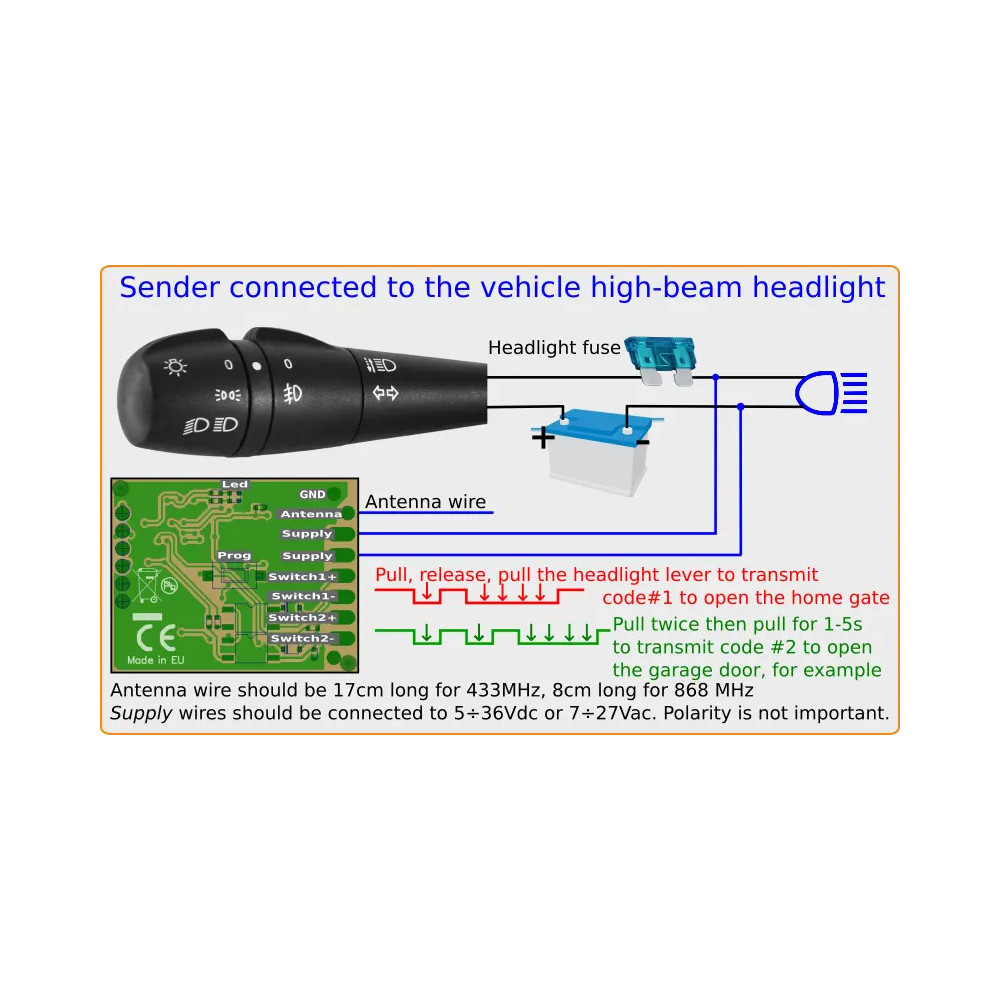

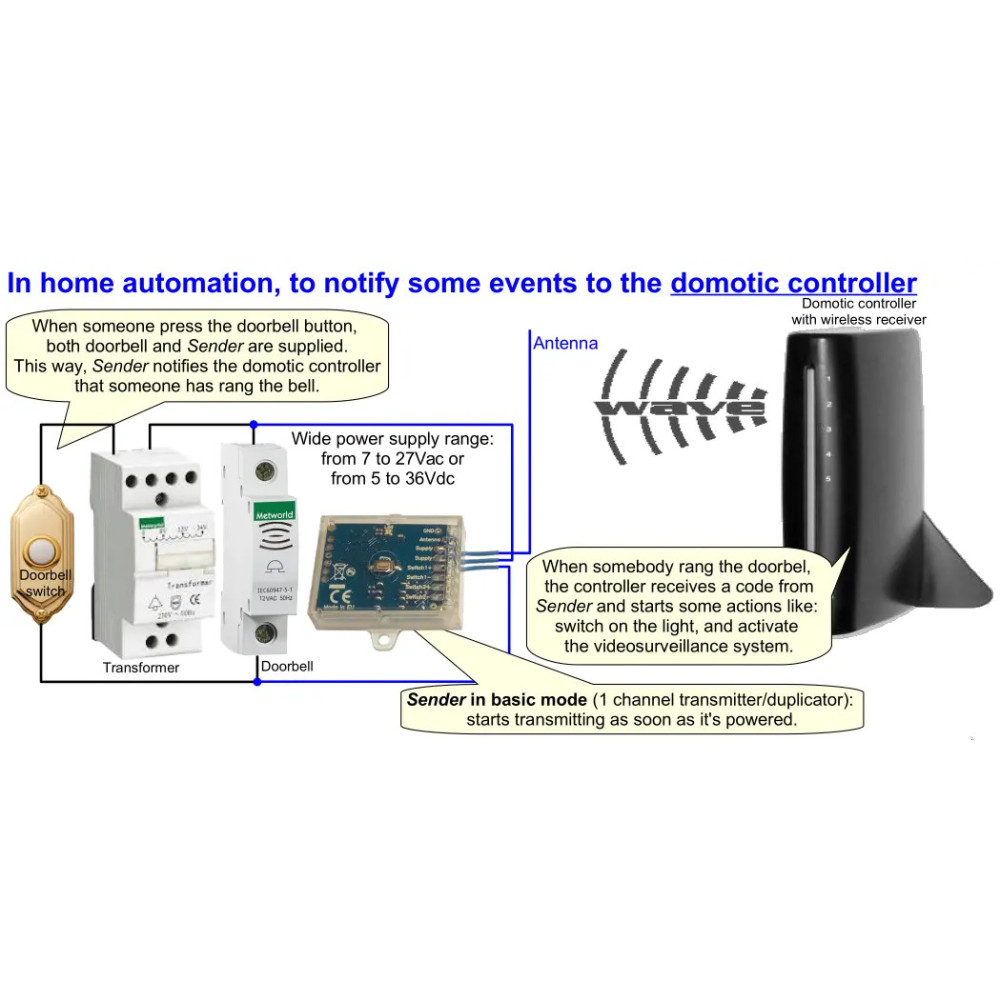

It can be used to open a gate, garage door or traffic barrier, as like as other home automations (domotic appliances).

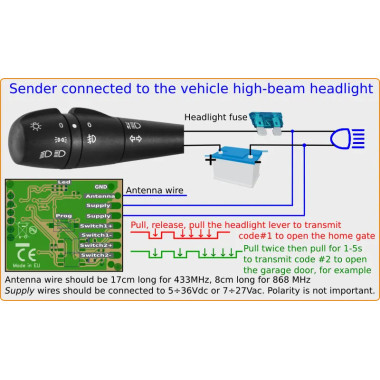

It should be connected, through an external switch, to an external power supply: a wide range of voltage, 7÷35Vdc and 5÷24Vac, is supported.

When the external switch is pressed (closed), the device is supplied and start to transmit the code that was previously learned.

It's provided in nice blister with instructions printed in several languages. Companies that would like to purchase this product can send an inquiry to store@creasol.it specifying the company details, including VAT ID and phone number. We can also supply this device with instructions customized with your company logo, name, details and preferred languages.

Documentation

creasolMultiFourRecLock


Remote controls compatible with Creasol Sender and Creasol SenderBatt

CompanyFrequencyModelsPhotoFrequency  value (cmd=5)Notes
ADYX433.920ALIZE EM2C, ALIZE EM4CADYX2
AETERNA433.920TX433 1,2,4 buttonsaeterna_tx433_433MHz2
ALLMATIC306.000ALLMATIC ASMX2, ASMX4ALLMATIC ASMX8Original remote controls may be not stable in frequency
433.920ALLMATIC AEMX1, AEMX2, AEMX4ALLMATIC AEMX2
EUROPE AUTO ARMY1, ARMY2, ARMY4allmatic_army_433MHz2
ALLMATIC MX1, MX2, MX4ALLMATIC MX2
ALLTRONIK433.920

S429_1, S429_2, S429_4, S429_M

Be sure that your remote operates at 433.92MHz!

torag_s429_433mhz
alltronic_S429M_433MHz
2
S425alltronic_s425_433MHz2
ANSONIC433.920SA 434-1E, SA434-2E, SA434-3E, SA434-4E
ansonic_sa434-Xe_433MHz2
SA 434-1MINI, SA434-2MINI, SA 434-2Midiansonic_sa434-Nmini_433MHz2
868.350SA 868-1E, SA 868-2E, SA868-3E, SA868-4Eansonic_sa434-Xe_433MHz3

SA 868-1mini/M, SA 868-2mini/M (dip switch version)ansonic_SA_868-XminiM_868MHz3

APERTO433.920CPS1, CPS2, CPS
cps4_43_433mhz2
AVIDSEN433.920100601 micromark MM23164AVIDSEN MICROMARK2
104505avidsen_104505_433MHz2
100951, 100955, 100550, 100400avidsen_100955_433MHz2
BANDY433.920 BANDY2Not sure it work, because this is a duplicator: check the original remote control
BELFOX433.920DHS433-1, DHS433-2, DHS433-4, dip switch versionbelfox_DHS433-4_433MHz2
DHS 433,92 (7733), dip switch versionbelfox_4Kanal_433MHz2
868.350DHS 868,3, dipswitch versionbelfox_4Kanal_433MHz3

HS 868-20dickert_hs868-20_868MHz3

BENINCA'306.000LOT1A, LOT2A, LOT4ABENINCA_LOTx8Original remote controls may be not stable in frequency
LOTX1A, LOTX2A, LOTX4ABENINCA LOTXx8Original remote controls may be not stable in frequency
LO.TX2PSBENINCA LOTXxPS8Original remote controls may be not stable in frequency
433.920LOT1W, LOT2W, LOT4WBENINCA LOTxW2
LOT2WMSBENINCA LOT2WM2
T2WK, T4WKBENINCA TxW2
LOTX1W, LOTX2W, LOTX4WBENINCA' LOTXxW2
TO.GO2WP, TO.GO4WP, TO.GO2WK, TO.GO4WKbeninca_to.go2wp_4332
BERNER868.300Berner BHS140berner_bhs140_8683Firmware Rev.03c or later
Berner BHS130berner_bhs130_8683Firmware Rev.03d or later
BESIDE433.920BEZAPBESIDE BEZAP2
HIT2
BETA ELETTRONICA315.000
BETALARM 6500
betalarm_6500_315MHz
4Original remote controls may be not stable in frequency
330.000BETALARM 5500betalarm_5500_330MHz11Original remote controls may be not stable in frequency
BFT306.000 RCSBFT 306MHZ8Original remote controls may be not stable in frequency
315.000VTM1, VTM2, VTM4BFT VTMx4Original remote controls may be not stable in frequency
418.000GT01, GT02, GT04BFT TE0414
433.920TE01, TE02 ( TEO1, TEO2 )BFT TE0x2
TE04 ( TEO4 )BFT TE042

BFT MITTO 2, MITTO 4, MITTO-2A, BFT MITTO-4A, MITTO-2M, MITTO-4M
BFT TRC 1, TRC 2, TRC 4
Only if the receiver is CLONIX 1 or CLONIX 2 with DIP2 in ON position

bft_mitto_k2
BOSS Openers
STEEL-LINE Automation
Centurion
Guardian
303.000BOSS HT4 6211-L 1,2 and 4 buttons, Boss BHT4, Boss HT3 blue led, Guardian 2211-L, Centurion 2211L, LYNX 2211L, MODERN 2211L 1 and 2 BUTTONs, STEEL-LINE 2211L 1, 2 and 4 BUTTON, STEEL-LINE HT3 BLUE LED, Garage Door Openers BRD1, BRD2, BRD3, BRD4, BRD9, RD1, RD2, RD3, RD4, RD9, BOL4, BOL5, BOL6, BOL9, OL4, OL5, OL6Boss Steel-Line Guardian Centurion 303 MHz7Only versions from March 2017: ask for confirmation
BREDA433.920Breda TOP432SALike CAME TOP432SA, blue2
CAME315.000Came T312M, T314M 4Original remote controls may be not stable in frequency
Came TOP312, TOP314came_top312_3154
Came TOP312NA, TOP314NAcame_top312na_3154
433.920Came T432, T434
Came TOP432A, TOP434A, TOP432, TOP432NA, TOP434NA, Came Came TAM432, TAM434, TAM438
CAME T43x2
Came TOP432M, TOP434Mcame_top432m_433MHz2
Came TAM432SACAME TAM432SA2
Came TOP432SACAME TOP432S2
Came TOP432NA, TOP434NA
CAME TOP432NA2
Came TWIN2, TWIN4came_twin_433MHz2
CAME TOP-432EE, CAME TOP434EEcame_top432ee2
CAME TOP-432EV, TOP-434EVcame_top434ev2
868.350CAME TOP862NA, Came TOP864NAcame_top862na3
CARDIN300.000S300CARDIN S3006Original remote controls may be not stable in frequency
310.000S301, S302CARDIN S3009Original remote controls may be not stable in frequency
433.920S476 TX2, S476TX4CARDIN S476 TX2

CASALI
GENIUS

330.000 CASALI 330MHz11Original remote controls may be not stable in frequency
433.920Genius 433 2, Genius 433 3, JA400 TM433, JA401 TM433CASALI GENIUS 4332

CASIT306.000ERTS92B, ERTS92TCASIT ERTS928
 Original remote controls may be not stable in frequency
433.920ERTS92B, ERTS92TCASIT ERTS922

ERTS20DB, ERTS20DQCASIT ERTS202

ERTS476D, ERTS476QCASIT ERTS4762

TXS1, TXS2, TXS3, TXS4, TXS6
ERTS97B, ERTS97T
casit_txs_433MHz2

CEDAMATIC433.920Cedamatic AEMX4, AEMX2, AEMX1ALLMATIC AEMX2
CELINSA433.920S10 1, S10 2, SAW1, SAW2CELINSA S102

CENTURION433.920CLASSIC, SMART, SMART2CENTURION CLASSIC2

CHAMBERLAIN
LIFTMASTER
MOTORLIFT
SEARS CRAFTSMAN
300.000Chamberlain 300MC (multicode)chamberlain_300mc_300MHz  Not supported yet!
315.000333LMchamberlain_33lm  Not supported yet!
360LM, 362LM, 363LM   Not supported yet!
390.00050CB, 53CB, 750CB, 753CB, 50LM, 53LM, 61LM, 62LM, 63LM, 139.53100, 139.53110, 139.53200, 139.53210   Not supported yet!
54CB, 756CB, 54LM, 64LM, 859CBchamberlain_64lm   Not supported yet!
850CB, 853CB, 959CB, 81LM, 82LM, 83LM, 84LM, 99LM
chamberlain_83lm   Not supported yet!
33LMchamberlain_33lm   Not supported yet!
418.0004180, 4182, 4183   Not supported yet!
4185chamberlain_4335_433MHz   Not supported yet!

787 remote

less entry

liftmaster_787_418MHz
   Not supported yet!
433.9204330E, 4332E, 4333E   Not supported yet!
4335Echamberlain_4335_433MHz   Not supported yet!
CPS433.920TCP3, CPS, Jolly 4CPS TCP32

CPS1 TCP3, CPS2 TCP3, CPS4 TCP3
EM1CV, EM2CV, EM4CV
CPS 4 4332

DASPI433.920Daspi Happy2 433, Daspi Pops2DASPI HAPPY22

Daspi Zero2, Zero2CLO, Zero4CLOdaspi_zero2
daspi_zero4clo
2
DEA306.000306 1, 306 2, 306 4DEA 3068
 Original remote controls may be not stable in frequency
306DEA 3068
 Original remote controls may be not stable in frequency
433.920433 1, 433 2, 433 4, Gold S1, Gold S2
Dea Gold 238 S1, Dea Gold 238 S2, Dea Gold 239 S4
DEA 4332

GenieDEA Genie2

Punto S2DEA Punto S22

Dea MIO TD2, MIO TD4dea_MIO_TD_433MHz2

DELMA300.000Apollo 300, ELSAMEC Apollo 3006
Original remote controls may be not stable in frequency
Mizard 300 1, Mizard 300 2, KingDELMA Mizard300 6
 Original remote controls may be not stable in frequency
433.920Mizard 433 1, Mizard 433 2DELMA Mizard4332

King 433 2DELMA King4332

Style Copy 2CH (this is a code duplicator)delma_style_copy_433MHz2

DICKERT433.920Dickert MAHS433 01, MAHS433 04
Note: we can NOT guarantee that it can be duplicated, because it depends by the receiver.
DICKERT MAHS433 Not supported yet!
Dickert S10-433A1L00, S10-433A4L00, S20-433A1L00, S20-433A4L00, S20-433A1000, S20-433A4000
Note: only RED buttons model can be duplicated!
DICKERT S10 868 A2


Dickert S5-433-A2L00, S5U-433-A2L00
Note: only RED buttons model can be duplicated!

DICKERT S5 8682

868.350Dickert HS868-21
Note: only RED buttons model can be duplicated!
DICKERT HS868 203


Dickert S5-868A2L00, S5U-868A2L00
Note: only RED buttons model can be duplicated!

DICKERT S5 8683

Dickert S10-868A100, S10-868A400, S20-868A1L00, S20-868A4L00, S20-868A1000, S20-868A4000
Note: only RED buttons model can be duplicated!
DICKERT S10 868 A3

Dickert S5-868A2L01, S10-868A1L01, S10-868-A4L06, green buttonsdickert_S10-868A4L06_868MHz3Firmware Rev.03c or later
DIGICODE300.000
310.000
DC5010, DC5012, DC5030, DC5032, DC5040, DC5042, DC5060, DC5062, DC5070, DC50726 or 9
Original remote controls may be not stable in frequency
DITEC433.920GOL4CDITEC GOL4C2

DOITRAND
FDOITRAND
433.920MPSTF2E JAUNE, MPSTF4E, HYPERPHONE MPSTF2E_GRISEDOITRAND MPSTF2E JAUNE2

TS2DE, TS4DE
DOITRAND TSxDE2

DOORHAN433,920 doorhan_433MHz2
DOORMATIC433.920SAWDOORMATIC 433MHz2


DUCATI
ALLDUCKS

433.920TSAW1, TSAW2, TSAW3, TSAW4, 124
ELBER TSAW1, TSAW2, TSAW3, TSAW4
RONDY TSAW1, RONDY TSAW2, RONDY TSAW3
DUCATI TSAW2

TPR10-A, TPR20-A
RONDY TPR10_A, RONDY TPR20_A
ducati_tpr20_433MHz2

TE2DUCATI TE22

6203blue and transparent, with transparent buttons

allducks_6203_12bit

2


DÜWI
DUWI
REV Ritter

433.920
Several models, handsender used for radio sockets

2

ELBE433.920501, 502, 504ELBE 50x2

502a, 504aELBE 50xA2

502, 504elbe_502_433MHz2

ELCA     300.000Aster 1100, Aster 1101ELCA ASTER E110x6
Original remote controls may be not stable in frequency
433.920

IRIS, IRIS 9CH.
Both colors red and blue

ELCA IRIS 2

ASTER2ELCA ASTER22

Aster 1000, Aster1001.
Colors: black, blue, light grey
ELCA ASTER E100x2

GEMINI 9CHelca_gemini_9ch_433MHz2

VIRGOelca_virgo_433MHz2


ELDAT
MFZ

433.920 Eldat Basewave RT20-4103M-01, RT20-4104M-01, Eldat RT20-4k, Eldat RT35-4104M-01, RT35-4k, Eldat RT21-4101M-01, RT21-4102M-01, MFZ 400033 , MFZ RT20-4104M-01eldat_rt202
Eldat Basewave RT28-4101M-01, RT27-4101M-01, RT26-4101M-02, RT21-4125M-01, RT21-4139M-01, RT21-4139M-02, RT31-4139M-01, RT31-4139M-02, RTC02-4104M-01eldat_rt272
868.300Eldat Basewave RT20-5004M-01, RT20-5003M-01, Eldat RT20-5k, Eldat RT35-5004M-01, RT35-5k, Eldat RT21-5001M-01, RT21-5002M-01, NASSAU RT20-4Keldat_rt203
Eldat Basewave RT28-5001M-01, RT27-5001M-01, RT26-5001M-02, RT21-5025M-01, RT21-5039M-01, RT21-5039M-02, RT31-5039M-01, RT31-5039M-02, RTC02-5004M-01eldat_rt273

ELV
CONRAD

868.350FS20 S4, FS20 S8, FS20 S8-2, FS20 S16, FS20S16R, FS20 S20-2, FS20 S20-3
fs20_s4_868MHz
 3
ELVOX433.920Elvox ET02 ZT03elvox_433MHz2

Elvox ET03, ET04elvox_et04_433MHz2

868.350Elvox ET08elvox_et08_868MHz3

ERONE433.920 SETDS39433E2, SETDS39433E4erone_setds39433eX_433MHz2

ERREKA433.920Erreka LUNA, SMAT RESON 1, RESON 2, Erreka RESON 3erreka_luna
erreka_reson3
2
EUROPE AUTOMATISME306.000ASMY1, ASMY2, ASMY4allmatic_army_433MHz8Original remote controls may be not stable in frequency
433.920ARMY1, ARMY2, ARMY4allmatic_army_433MHz2
S1, S2, S3ea_s32
FAAC300.000Faac TM300S, TM300S05 H
Faac TM1 300, TM2 300, TM3 300
6
Original remote controls may be not stable in frequency
315.000Faac T1, T2, T3
Faac TM1 315, TM2 315, TM3 315
4
 Original remote controls may be not stable in frequency
330.000Faac TM1, TM2, TM3
Faac TM1 330, TM2 330, TM3 330
FAAC 433DS11
 Original remote controls may be not stable in frequency
418.000Faac TM1 418 DS, TM2 418 DS, TM3 418 DSFAAC 433DS14

Faac TM 418SL, TM1 418SL, TM2 418 SL, TM3 418SLFAAC 433DS14

433.920Faac TM1 433 DS, TM2 433 DS, TM3 433 DS
TM1 433DS DPH, TM2 433DS DPH, TM3 433DS DPH
FAAC 433DS2

Faac TML2 433 SLR, TML4 433 SLR, TML2-433-SLR, TML4-433-SLR, TML2 433 ESL, TML4 433 ESLFAAC 433SL2

Faac TML2 433 SLP, TML4 433 SLP, TML2-433-SLP, TML4-433-SLPfaac_tml2_433_slp2

868.350Faac TM1 868 DS, TM2 868 DS, TM3 868 DS
Faac TM1 868DS DPH, TM2 868DS DPH, TM3 868DS DPH
FAAC 868DS3


FADINI

BPT

315.000ASTRO75-1, ASTRO75-2, ASTRO75-44
Original remote controls may be not stable in frequency
433.920433 2M, Astro43_2mFADINI 433 2M2

Astro433-2, Astro433-4, Astro43-2, Astro43-4FADINI Astro433 2

FERPORT433.920Tac1, Tac2, Tac4, Tac1k, Tac2k, Tac4k, Tac2krFERPORT TAC2


FUNKMODUL

ELSECO

433.920T433A2K1, T433A2K2funkmodul_T433A2K2_433MHz2

T433A2K4, T433A2K4nfunkmodul_T433A1K4_433MHz2

GIBIDI306.000TS2MGIBIDI T2SM8
Original remote controls may be not stable in frequency
433.920Open TMB 433, OPEN TMQ 433, OPEN OUT 2, OPEN OUT 4GIBIDI Open TMB2

GOBBATO306.000T306GOBBATO T3068
Original remote controls may be not stable in frequency
GRIFFON403.55Griffon 404 MHz dip switch remotes and duplicating remotesgriffon_404_433_MHz13

433.92Griffon 433 MHz dip switch remotes and duplicating remotesgriffon_404_433_MHz2

GTO318.000GTO Mighty Mule 1/2 buttons, RB741, RB742gto_mighty_mule_318MHz Not supported yet!
GTO Mighty Mule 3 buttons, RB743gto_mighty_mule3_318MHz  Not supported yet!
GULLIVER306.000Gulliver MD/1, Gulliver MD/1, Gulliver MDRQ 306 LABELGULLIVER8
Original remote controls may be not stable in frequency
433.920MDW 2EGULLIVER MDW2

HAUSS433.920Pocket 3750-1, Pocket3750-2, Pocket 3750-4hauss_pocket_433MHz2

HEDDOF318.000P219-1, P219-2heddolf_p219-2_318MHz Not supported yet!
P220-1, P220-2, P220-3heddolf_p220-3_318MHz Not supported yet!
HORMANN
HOERMANN

433.920

HSM2, HSM4, yellow buttons

HORMANN HSM2

868.300HS1, HS2, HS4, blue buttons

hormann_HS1_868MHz
hormann_HS2_868MHz

3

HSD2hormann_HSD2_868MHz3

HSE2, HSE4, blue buttonshormann_HSE2_868MHz 3
HSM2, HSM4, blue buttonsHORMANN HSMx  BLEU3

HSP4, blue buttonshormann_HSP4_868MHz3

HSS2, HSS4, blue buttonshormann_HS4_868MHz3

HSZ1-868, HSZ2-868hormann_HSZ2_868MHz3

HRC433.920  2

JAY433.920UBEI x1 SL12

UBET 11, UBET 21, UBET 31, UBET 41, UBET 61ÂJAY UBET x1 SL12

KEY AUTOMATION  433.920  900TXB-42, 900TXB-42N, 900TXP-42, 900TXP-42Nkey_txb-42n_433MHz2

900TXB-44, 900TXG-44key_txg-44_433MHz2

900SUB-44, 900SUB-44N, 900SUB-44W, 900SUB-44WN key_sub-44_433MHz2

900TXK-42, 900TXW-42,900TXK-44, 900TXW-44key_txk-44_433MHz2

KING433.920
  Not yet supported!
LABEL
IUPPITER
306.000MDR, IUPPITER 306JUPPITER 306 MHz8
Original remote controls may be not stable in frequency
433.920RJW/1E, RJW/2E, RJW/4E, RJW/12ELABEL RJW4E2

MDW/1E, MDW/2EGULLIVER MDW2

LEB306.000TSA4LEB TSA48
Original remote controls may be not stable in frequency
433.920TMWLEB TMW2

TSAW2N, TSAW4Nleb_tsawXn_433MHz2

TCP3  (this is a code duplicator)leb_tcp3_433MHz2
 Not sure it work, because this is a duplicator: check the original remote control
TRK4 leb_trk4_433MHz2

TPW4leb_tpk4_868MHz2

868.300TPK4leb_tpk4_868MHz3

LINCE433.920LR 2035 2
LINEAR

300.000
310.000

MULTI-CODE 308911, 308913, 1089LINEAR MULTICODE 6 or 9
 Original remote controls may be not stable in frequency
MULTI-CODE 412001, 414001, 109410, 109710linear_4140_300MHz6 or 9
 Original remote controls may be not stable in frequency
MULTICODE 306010, 307010, 108210linear_3070_300MHz 6 or 9
 Original remote controls may be not stable in frequency
MULTI-CODE 308301, 308302linear_3083_300MHz 6 or 9
Original remote controls may be not stable in frequency
MULTI-CODE 105015linear_105015_310MHz 6 or 9
Original remote controls may be not stable in frequency
310.000Delta3 Moore-o-Matic: DT, DT2, DT2A, DT22A, DTC, DTD
LINEAR DELTA3 9 Not supported yet!
Delta 3 Moore-o-Matic: DT3, DT4linear_dt4_310MHz 9Not supported yet!
Delta 3 Moore-o-Matic: Mini-T LB "LadyBug"linear_mini-t_ladybug_310MHz 9Not supported yet!
312.000Delta3 DTK (canada)LINEAR DELTA3  Not supported
MA SYSTEM433.920MA TX1, MA TX2, MA TX3MA TXx2

MARANTEC418.000D212, D222, D232marantec_d212_418_433MHz14

433.920D101MARANTEC D1012

D12MARANTEC D12 2
D212, D222, D232marantec_d212_418_433MHz 2
Digital 302, D302MARANTEC Ddigital 302 2
Digital 304, D304MARANTEC Digital 304 2
868.300 Digital 302, D302MARANTEC Ddigital 302 3
Digital 304, D304MARANTEC Digital 3043

MCZ433.920Astermcz_aster_433MHz2

MEIßNER
MEISSNER
433.920LW433-1, LW433-2, LW433-4smd_lw433Midi_433MHz2

Pocket 3750 1, 2, 4hauss_pocket_433MHz2


MKTECHNO
MK-TECHNO

306.000 MK-TECHNO TX1 and MKTECHNO TX2, with RED LED
mktechno_tx28
MONSEIGNEUR433.920ARC2, ARC4MONSEIGNEUR ARC2

TDR 400 3845, TDR 400 3846, TDR 400 3847
T1SAW433, T2SAW433, T4SAW433
v2_2_tcp3_433mhz2


MOTORLINE
STATEUROP

433.920MX1, MX2, MX3, MX4, MX6
MX11, MX12, MX13
SEAV TXx
seav_behappy
2

MOTOSTAR433.920CLIKSTAR2, CLICKSTAR4
CLICK-4M, CLICKSTAR RE 532, CLICKSTAR RE 534
motostar_clickstarX_433MHz2

NICE306.000EASY S1, S2, S48
Original remote controls may be not stable in frequency
433.920FLO1, FLO2, FLO4NICE FLO2

VERY VEnice_very_ve_433MHz2

NOLOGO306.000 NOLOGO 306MHz8
Original remote controls may be not stable in frequency
433.920ECO DIP2

NOVOTECNICA306.000BIT N1, BIT N2novotecnica_bitn2_306Mhz8
Original remote controls may be not stable in frequency
BIT NT1, BIT NT2, BIT NT4novotecnica_bit_ntX_306MHz2

OG433.920OG62, OG64OG6x2

O&O
OeO
O and O
360.000OeO TX2, OeO TX4 (green buttons)oeo_t48Original remote controls may be not stable in frequency
433.920OeO TX2-E, OeO TX4-E (red buttons)
oeo_t43
T-COM DS 4-2, T-COM DS 4-4oeo_t-com_ds_4-x_433MHz2

OPENOUT306.000TS2MOPENOUT TS2M 8
Original remote controls may be not stable in frequency
433.920TMQ 433 2, TMQ 433 4OPENOUT TMQ2

PIAZZETTA433.9204 buttons for wood/pellet heaterpiazzetta_433MHz2

PORTAMATIC433.920MPH01, MPH02PORTAMATIC MPH0x 433MHz2


POWERFIX Profi
(Lidl)

433.920RCB-A 3600Rpowerfix_profi_rcb-a_433MHz2

PRASTEL306.000NCSMT1, NCSMT2P, NCSMT4PPRASTEL NCSMT8
Original remote controls may be not stable in frequency
KMFT2P, KMFT4P, KMFT2P93, KMFT4P93PRASTEL KMFTxP8
Original remote controls may be not stable in frequency
433.920MPSTF2E, MPSTF4EPRASTEL MPSTF2

PROEM433.920ER2C4ACM, ER4C4ACMproem_erXc4acm_433MHz2

PROGET433.920ETY_433N2, ETY 433N4PROGET ETY2

EMI433-N2proget_emi433_n2_433MHz2

PROTECO433.920TX433PROTECO TX 4332

EUROMATICPROTECO euromatic2

HITproteco_hit_433MHz2

PUJOL288.000JCM TRINARIO 1, TRINARIO 2, TRINARIO 3PUJOL 288MHz5
Original remote controls may be not stable in frequency
288.000TT1, TT2, TRINARIO 1, TRINARIO 2PUJOT TTx5
Original remote controls may be not stable in frequency
PULSAR318.0009931-318, 9931T-318ALLSTAR 9931 Not supported yet!
QUASAR433.920433 TANGO SLIM BLEUQUASAR 4332

QUICK433.920Model: 302 quick_302_433MHz2

ROGER433.920R80/TX12, R80/TX14, R80/TX12R, R80/TX14Rroger_tx14_433MHz2

H80/TX22roger_tx22_433MHz
G80/TX32, G80/TX34, G80/TX32R, G80/TX34Rroger_tx3X_433MHz
SEA
433.920 SEAV  TXS2

SMART433_TX2, SMART433_TX3
SMART433_TX2_COPY,SMART433_TX3_COPY
Smart2, Smart3
SEA SMART DIP2

868.350231103, SEA868_4SEA 2311033

231103, Head2 Dip SwitchSEA 2311033

SMART868-TX2, SMART868-TX3
Smart2, Smart3
SEA SMART DIP3

SEAV306/330

TX1, TX2, TX3, TX4, TX1/330
TX2/330, TX3/330, TX4/330

SEAV TXx8
Original remote controls may be not stable in frequency
433.920TXS1, TXS2, TXS3, TXS4SEAV TXx2

Behappy S1, Behappy S2, Behappy S3seav_behappy2

Be Easy TX, Be Easy Murale2SEAV BE EASY TX2

BeSmart S2, BeSmart S4seav_besmart_433_868MHz2

BeFree S1seav_befree_433_868MHz2

868.300BeSmart H2, BeSmart H4seav_besmart_433_868MHz3

BeFree H1seav_befree_433_868MHz3

SECURVERA433.920SV R2CSECURVERA SV_R2C2

SV R2CSECURVERA SV R2C2

SV R4CSECURVERA SV R4C2

SV R6CSECURVERA SV R6C2

SENDER433.920 sender_4332


SENTRY

MARTIN ELECTRONICS

403.550SENTRY binary, SENTRY trinary
ssentry_trinary_403MHz13

433.920SENTRY binarysentry_binary_433MHz2

SERAI310.000OG/32SERAI 3109
Original remote controls may be not stable in frequency
433.920OG/52, OG/54, OG/82, OG/84SERAI 4332

OG/28, OG/48, OG/62, OG/64SERAI OGx82

OG/02, OG/04SERAI OGx82

SICE433.920TX4 CLACK BigfootSICE Clack Bigfoot Not supported!
SILVELOX - INTRA306.000Green case with black buttonsALLMATIC AEMX8Original remote controls may be not stable in frequency
433.920Silvelox Intra HSM4HORMANN HSM2
SIMBA433.920Simba RC1, Simba RC4
simba_rc12
SIMINOR433.920ER2C4ACM, ER4C4ACM, ER2C4ACS, ER4C4ACS
proem_erXc4acm_433MHz2

SKYLINK

300.000
310.000

MultiLink SD300M, Skylink 100, LD310M, SD310M
skylink_sd300m_300MHz6 or 9
Original remote controls may be not stable in frequency
318.000Skylink Mltilink PD-318Mskylink_multilink_PD-318M_318MHz Not supported yet!
390.000Multilink CB-390M, CD-390M
(versions compatible with Chamberlain)
skylink_multilink_cd-390m_390MHz Not supported yet!
SMD433.920LW433-1, LW433-2, LW433-4 : AM models onlysmd_lw433Midi_433MHz2

SOMFY433.920LEB TMWSOMFY LEB TMW2

STAGNOLI433.920ZEUS AZTRSTAGNOLI Zeus AZTR2

868.350ZEUS AZTRZEUS AZTR3

STANLEY310.000242869
Original remote controls may be not stable in frequency
1082linear_3070_300MHz9
Original remote controls may be not stable in frequency
1050linear_105015_310MHz9
Original remote controls may be not stable in frequency
1094stanley_1094_310MHz9
Original remote controls may be not stable in frequency
1097stanley_1097_310MHz9
Original remote controls may be not stable in frequency
STARTEC433.920TXQ2STARTEC TXQ22

STINGER300.000
310.000
318.000
390.000
300MCD21V, 300MCD22V
310MCD21V, 310LID21V, 310LID22V
318ALD31V
390LMD21V, 390LMPB1V
stinger_300MCD21V_300MHz
diff. colors
 This is a compatible remote control: please look for the compatibility of the original retmotes!
TAU315.000250 TXA2, 250 TXA4TAU 250TXA4
Original remote controls may be not stable in frequency
433.920250 SLIM, 250K-SLIM, 250K-SLIMCTAU 250 SLIM2

250TXD2, 250TXD4TAU 250 TXD2

250BUG2, 250BUG4TAU BUG 2
250T-4, 250T-4Ctau_t-4_433MHz2

TEC KEY300.000MK1010TEC KEY MK10106
Original remote controls may be not stable in frequency
TECNOMATIC433.920TQ433tecnomatic_tq433_433MHz2

TEDSEN
BERNER
GFA Elektromaten
433.920SKX1MD, SKX2MD, SKX3MD, SKX4MDTEDSEN SKXxMD2

SKX1KD, SKX2KD, SKX4KD, SKX6KDtedsen_skxNhd_433MHz2

SKX1DL, SKX2DL, SKX3DL, SKX4DLTEDSEN SKX4DL 2
SKX1LC, SKX2LC, SKX3LC, SKX4LCtedsen_skxNlc_433MHz 2
SKX1SL, SKX2SL, SKX3SL, SKX4SLtedsen_skxNsl_433MHz 2
SKJtedsen_skj_433MHz 2
SKX1WD, SKX2WD, SKX4WD, SKX11WD, SKX22WD, SKX44WDTEDSEN SKX44WD 2
TELCOMA306.000RCST2, RCST4telcoma_rcst2_306mhz 8Original remote controls may be not stable in frequency
433.920TELCOMA EDGE 2, TELCOMA EDGE 4telcoma_edge2
TELCOMA TANGO 2 SW, TANGO4 SWTELCOMA TANGO
telcoma_tango4sw_433MHz
2

TANGO BLUE 2, TANGO 4 BLUE, TANGO BLEU 2, TANGO BLEU 4telcoma_tango_blue2_433MHz2

TANGO 2 N, TANGO 4 Ntelcoma_tango4n_433MHz2

TANGO 2 SLIM, TANGO 4 SLIMTELCOMA SLIM2

Telcoma Noire2, Noire4
Note: Rolling-code jumper should be removed from the receiver!
telcoma_noireX_433MHz 2
TANGO WIN3telcoma_tango_WIN3_433MHz 2
TANGO2, TANGO4telcoma_tangoN_433MHz2

TELEMATIC300.000TL1, TL2Telematic TLx 300MHz6Original remote controls may be not stable in frequency
TKC433.920TSAW433TKC TSAW2

TORAG433.920S429 1, S429 2, S429 4TORAG S4292

TORMATIC
DORMA
NOVOFERM
433.920HS, Dorma HS43 1E, HS43 2E, HS43 3E, HS43 4ETORMATIC HS2

MAHS, Siebau, Novoferm, DormaTORMATIC MAHS2

MHS, MHS43-1MHS2

TREMA433.920TO93TV1, TO93TV2, TO93TV4trema_to93tvN_433MHz2

TUBAUTO433.920DIGITAL 101 433MARANTEC D1012

V2306.000 TRR1_3068
Original remote controls may be not stable in frequency
318.000TPS1KV2 tcp310Original remote controls may be not stable in frequency
433.920

PHOENIX series: Phoenix2, Phoenix2P, Phoenix4, Phoenix4P, TXC2   Contr.47, TXC4 Contr.47, Handy2 Contr.47, Handy4 Contr.47, TRC4 Contr.47, TSC4 Contr.47 .
Note:the receiver should be programmed with the rolling code feature disabled.

V2 Phoenixv2_txc2
V2_handy4
V2_TRC4
V2_TSC4

2

TCP3V2 tcp32
TCP3, ARC3V2 TCP32
TCP3TCP32
TPRV2 TPR2
T1SAW/433, T2SAW/433, T4SAW/433v2_tNsaw_433MHz2
TRR1, TRR2, TRR4V2 TRR2
PMR2, PMR4v2_pmrN_433MHz2
868.300PHOENIX series: Phoenix2-868, Phoenix2P-868, Phoenix4-868, Phoenix4P-868.
Note:the receiver should be programmed with the rolling code feature disabled.
V2 Phoenix 868.3MHz3
VISONIC315.000WT100, WT100A, WT101, WT101A, WT102, WT104,WT-201, WT-201A, WT-201WP, WT-201AWPvisonic_WT10x
visonic_wt100_wt100a
visonic_wt201
4

418.000WT-100, WT-100A, WT-101, WT-101A, WT-102, WT-104,WT-201, WT-201A, WT-201WP, WT-201AWP14

433.920WT 100, WT 100A, WT 101, WT 101A, WT 102, WT 104,WT 201, WT 201A, WT 201WP, WT 201AWP2

VSEG433.920CR SLIMvseg_cr_slim_433MHz2

WAINE-DALTON433.920S429-1, S429-2, S429-4, S429-minialltronic_S429M_433MHz
torag_s429_433mhz
2

S425alltronic_s425_433MHz2


WECLA
CDS

433.920433, 433_2WECLA 4332

ZULLAN315.000250TXA1H, 250TXA2H, 250TXA4HTAU 250TXA4
Original remote controls may be not stable in frequency
OEM315.000

OEM 315MHz4
Original remote controls may be not stable in frequency

Additional information:

Original remote controls may be not stable in frequency: it means that the original remote controls has a transmitter circuitry which frequency may be NOT accurate. Because Sender and SenderBatt has a narrow bandwidth receiver, it can copy only remote control that are stable in frequency, like Creasol Multi .
Not supported yet!: it means that this kind of remote control cannot be copied now, but will be supported later.


ChangeLog

2014-01-14

Enhanced the number of pulses for MARANTEC remote controls to support new models.

2013-06-14

Enhanced TX TIME settings: now it's possible to set the number of transmitted frames to 64 and 128
